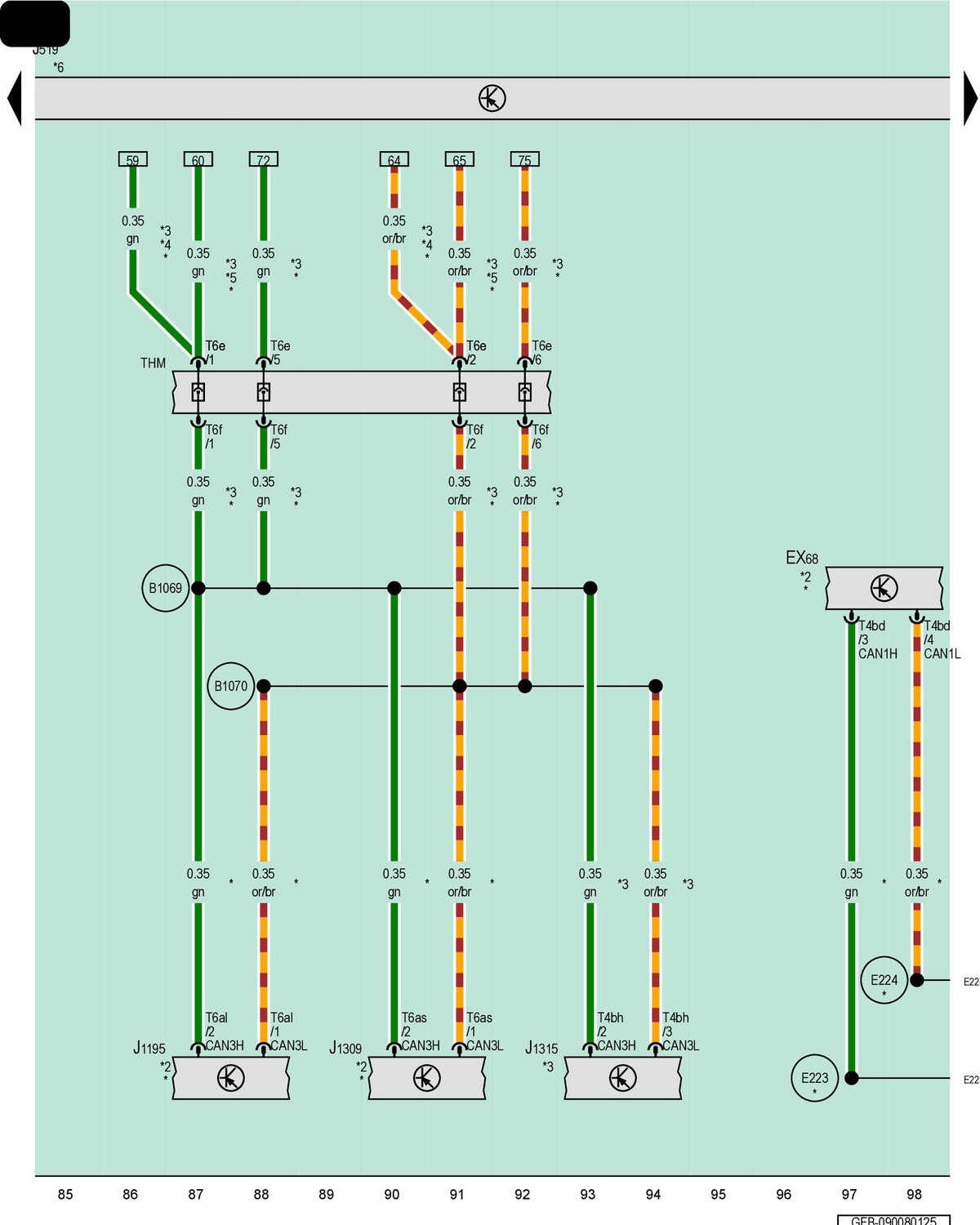

Driver Side Door Handle Control Head, Vehicle Electrical System Control Module, Burglary Protection Control Module 5, Burglary Protection Control Module 6, Child Occupant Detection Control Module

Courtesy of AUDI OF AMERICA, LLC

EX68

Driver Side Door Handle Control Head

J519

Vehicle Electrical System Control Module

J1195

Burglary Protection Control Module 5

J1309

Burglary Protection Control Module 6

J1315

Child Occupant Detection Control Module

T4bd

4-Pin Connector, White

T4bh

4-Pin Connector, Black

T6al

6-Pin Connector, Black

T6as

6-Pin Connector, Black

T6e

6-Pin Connector, Black

T6f

6-Pin Connector, Black

THM

Coupling Point on Roof, Center

B1069

CAN Bus 3, J519 High Connection 1 (in Roof Wiring Harness)

B1070

CAN Bus 3, J519 Low Connection 1 (in Roof Wiring Harness)

E223

CAN Bus 1, J519 High Connection 1 (in Door Wiring Harness)

E224

CAN Bus 1, J519 Low Connection 1 (in Door Wiring Harness)

*

For Vehicles with Cell Phone Access System

*2

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*3

For Vehicles with Interior Monitoring

*4

For Vehicles with Keyless Access Authorization

*5

For Vehicles Without Keyless Access Authorization

*6

Refer to Applicable Convenience System Wiring Diagram
