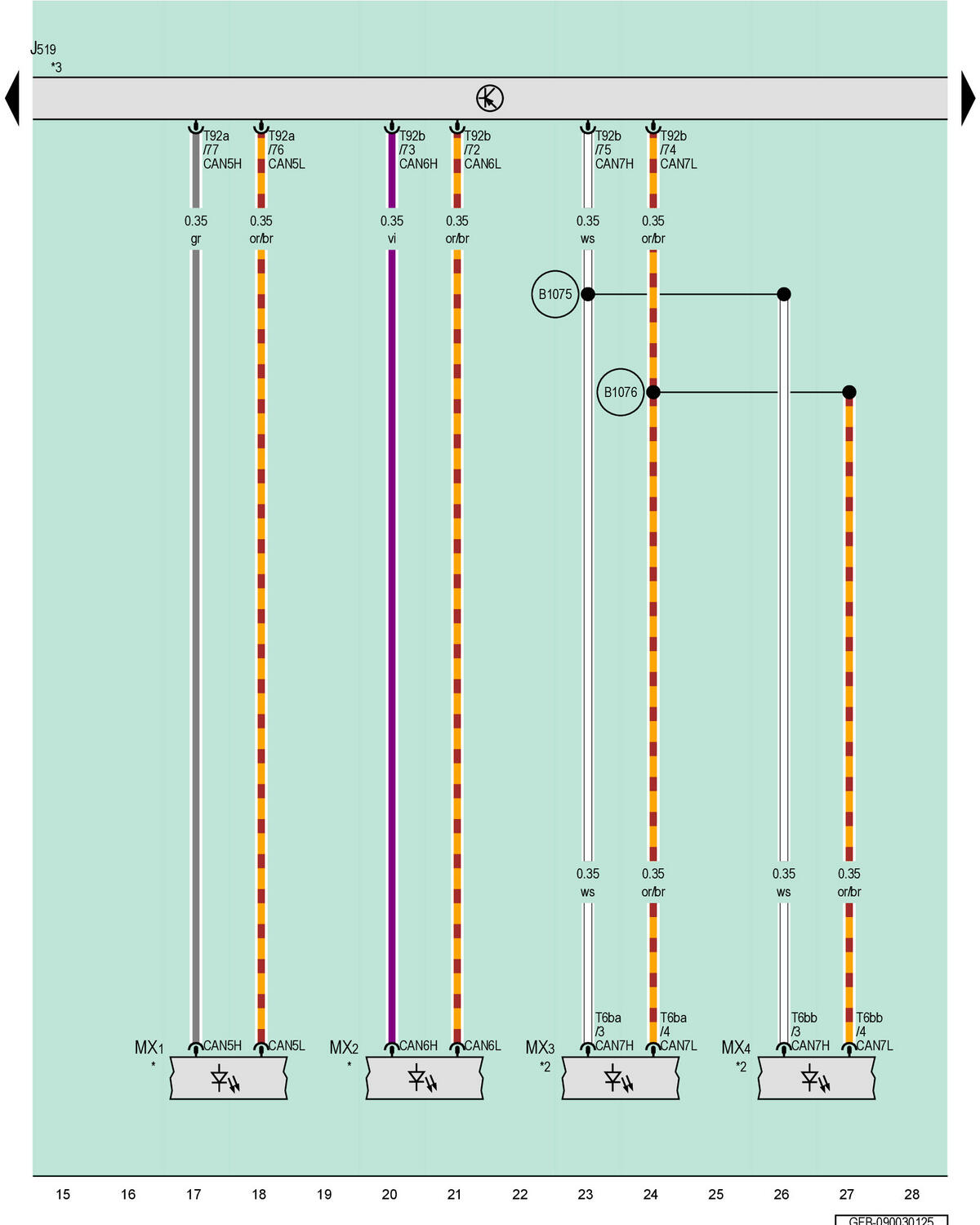

Vehicle Electrical System Control Module, Left Front Headlamp, Right Front Headlamp, Left Tail Lamp, Right Tail Lamp

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

MX1

Left Front Headlamp

MX2

Right Front Headlamp

MX3

Left Tail Lamp

MX4

Right Tail Lamp

T6ba

6-Pin Connector, Brown

T6bb

6-Pin Connector, Brown

T92a

92-Pin Connector, Black

T92b

92-Pin Connector, White

B1075

CAN Bus 7, J519 High Connection 1 (in Main Wiring Harness)

B1076

CAN Bus 7, J519 Low Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Headlamps

*2

Refer to Applicable Tail Lamp Wiring Diagram

*3

Refer to Applicable Convenience System Wiring Diagram
