Window Guide, Removing And Installing: Removing

-- Remove the window shaft strip cover. Refer to WINDOW SHAFT STRIP COVER, REMOVING AND INSTALLING .

-- Remove the inner window shaft strip. Refer to .

-- Remove the front door B-pillar trim. Refer to DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the front door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

-- Remove the subframe. Refer to SUPPORT FOR DOOR COMPONENTS, REMOVING AND INSTALLING  .

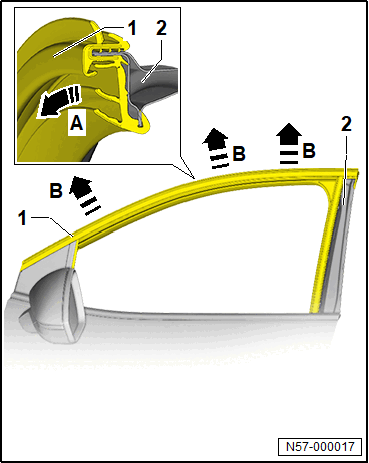

-- Remove the window guide -1- from the entire length of the door -2- -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the window guide -1- out of the door -B arrows-.
