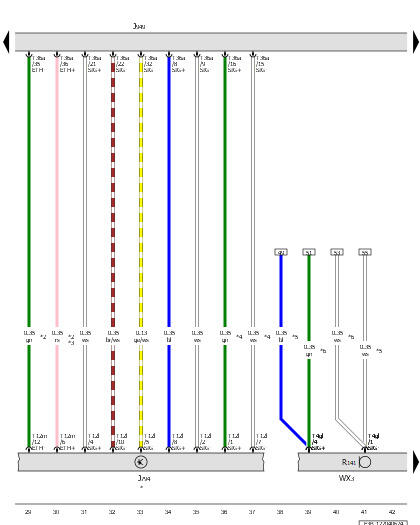

Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Front Roof Module
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
R141
Right Front Microphone
T4gl
4-Pin Connector, Blue
T12l
12-Pin Connector, Blue
T12m
12-Pin Connector, Green
T36a
36-Pin Connector, Black
WX3
Front Roof Module
*
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*2
Diameter Depends on Equipment
*3
Different Wire Color Possible
*4
For Vehicles with Emergency Call Module
*5
For LHD Vehicles
*6
For RHD Vehicles
