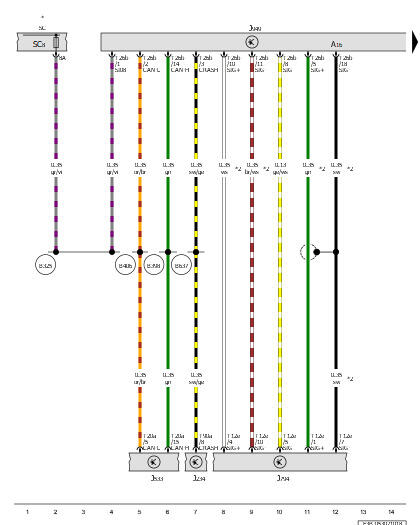

Airbag Control Module, Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

A16

Telematics Emergency Battery

J234

Airbag Control Module

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

SC

Fuse Panel C

SC8

Fuse 8 (On Fuse Panel C)

T12e

12-Pin Connector, Blue

T20a

20-Pin Connector, Black

T26b

26-Pin Connector, Black

T90a

90-Pin Connector, Yellow

B325

Positive Connection 11 (30a) (in Main Wiring Harness)

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B637

Airbag Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Not for Vehicles with Russia Equipment
