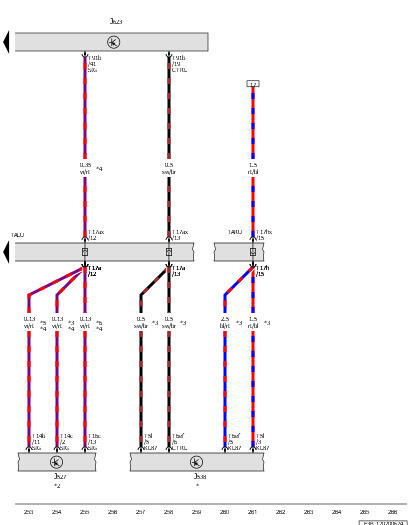

Steering Column Electronics Control Module, Fuel Pump Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J527

Steering Column Electronics Control Module

J538

Fuel Pump Control Module

J623

Engine/Motor Control Module

T5l

5-Pin Connector, Black

T6ef

6-Pin Connector, Black

T14b

14-Pin Connector, Black

T14c

14-Pin Connector, Brown

T16c

16-Pin Connector, Black

T17a

17-Pin Connector, Blue

T17ax

17-Pin Connector, Blue

T17h

17-Pin Connector, Red

T17hx

17-Pin Connector, Red

T91b

91-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

TARU

Coupling Point on Right A-Pillar, Bottom

*

Refer to Applicable Fuel System Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Multifunction Steering Wheel

*3

Depending on Equipment

*4

For Vehicles with Cruise Control System

*5

For Vehicles with Heated Steering Wheel

*6

For Vehicles Without Heated Steering Wheel
