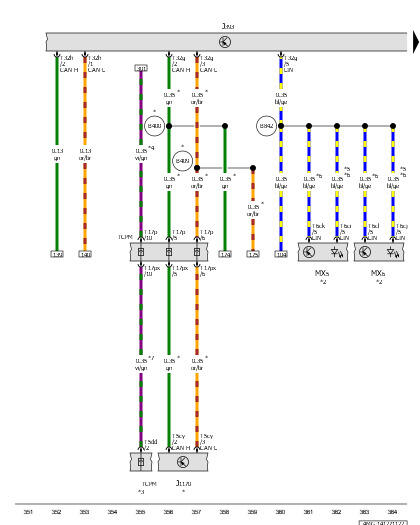

Comfort System Central Control Module, Near Field Communication Control Module 2, Left Tail Lamp 2, Right Tail Lamp 2
J393
Comfort System Central Control Module
J1170
Near Field Communication Control Module 2
MX5
Left Tail Lamp 2
MX6
Right Tail Lamp 2
T5cy
5-Pin Connector, Black
T5dd
5-Pin Connector, Black
T6ci
6-Pin Connector, Red
T6cj
6-Pin Connector, Red
T6ck
6-Pin Connector, Brown
T6cl
6-Pin Connector, Brown
T17p
17-Pin Connector, Black
T17px
17-Pin Connector, Black
T32g
32-Pin Connector, Naturally Cloudy
T32h
32-Pin Connector, Blue
TCPM
Coupling Point on Instrument Panel, Center
B400
Comfort System CAN Bus High Connection 4 (in Main Wiring Harness)
B409
Comfort System CAN Bus Low Connection 4 (in Main Wiring Harness)
B842
LIN Bus Connection 8 (in Main Wiring Harness)
*
Optional Equipment
*2
Refer to Applicable Tail Lamp Wiring Diagram
*3
Refer to Applicable Wiring Diagram
*4
For Vehicles with Ambient Lighting
*5
For USA Only
*6
For Vehicles with LED Tail Lamps
*7
For Vehicles with Auxiliary Lamps
