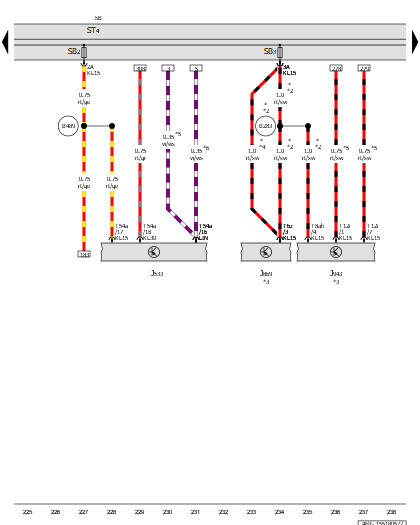

Data Bus On Board Diagnostic Interface, Structure-Borne Sound Control Module, Engine Sound Generator Control Module, Fuse Panel B, Fuse Panel 4
J533
Data Bus on Board Diagnostic Interface
J869
Structure-Borne Sound Control Module
J943
Engine Sound Generator Control Module
SB
Fuse Panel B
SB2
Fuse 2 (On Fuse Panel B)
SB3
Fuse 3 (On Fuse Panel B)
ST4
Fuse Panel 4
T6z
6-Pin Connector, Black
T8ah
8-Pin Connector, Black
T12i
12-Pin Connector, Black
T54a
54-Pin Connector, Black
B283
Positive Connection 7 (15a) (in Main Wiring Harness)
B489
Connection 25 (in Main Wiring Harness)
*
For Vehicles with a 8-Cylinder Engine
*2
For Vehicles with Diesel Engine
*3
Refer to Applicable Engine Wiring Diagram
*4
For Vehicles with Gasoline Engine
*5
For Vehicles with Hybrid Drive
*6
For Vehicles Without Hybrid Drive
