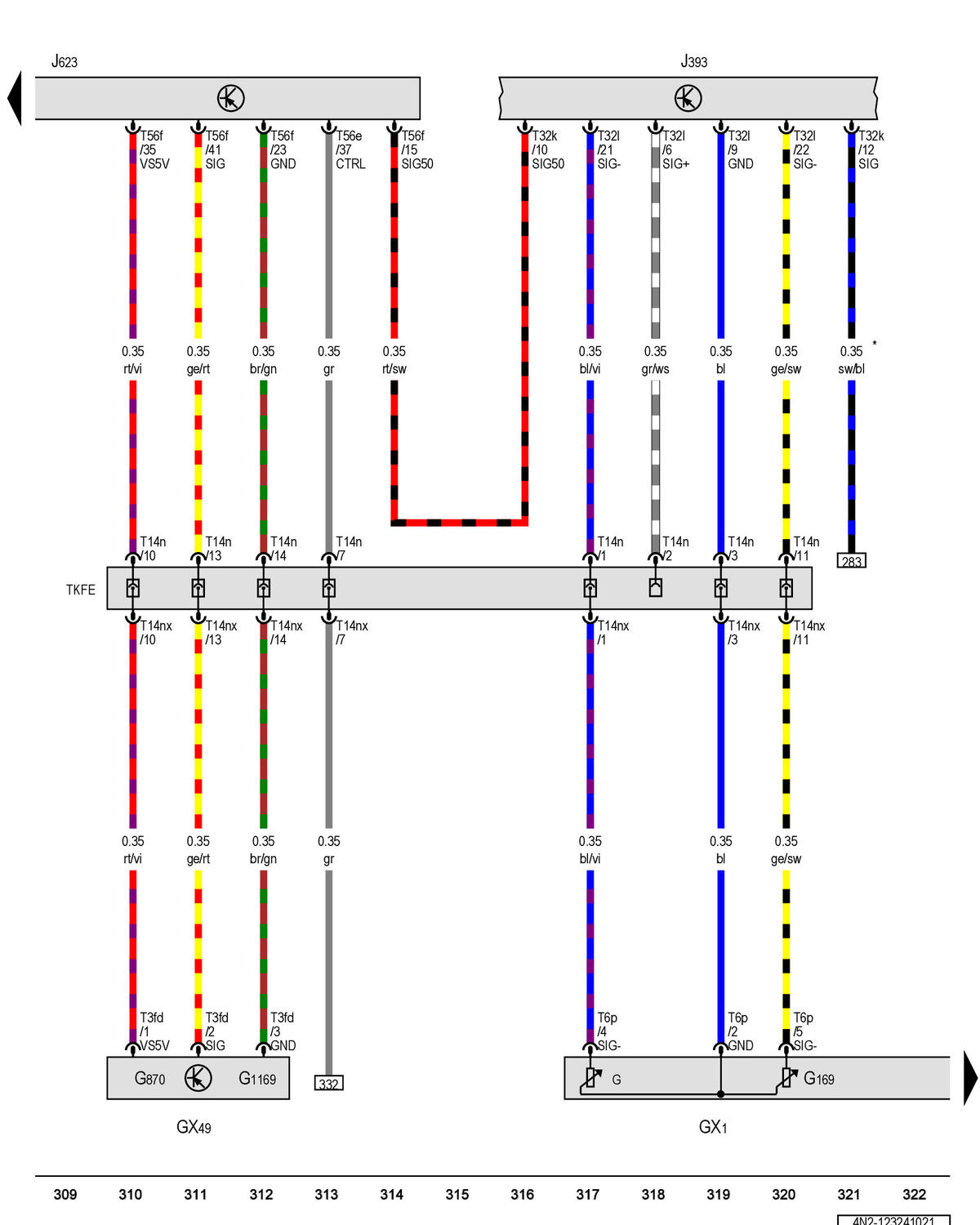

Fuel Delivery Unit, Fuel Tank Temperature And Pressure Sensor, Comfort System Central Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G

Fuel Level Sensor

GX1

Fuel Delivery Unit

GX49

Fuel Tank Temperature and Pressure Sensor

G169

Fuel Level Sensor 2

G870

Fuel Tank Temperature Sensor

G1169

Fuel Tank Pressure Sensor

J393

Comfort System Central Control Module

J623

Engine/Motor Control Module

T3fd

3-Pin Connector, Black

T6p

6-Pin Connector, Black

T14n

14-Pin Connector, Black

T14nx

14-Pin Connector, Black

T32k

32-Pin Connector, Black

T32l

32-Pin Connector, Blue

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

TKFE

Fuel Delivery Unit Coupling Point

*  Diameter Depends on Equipment
