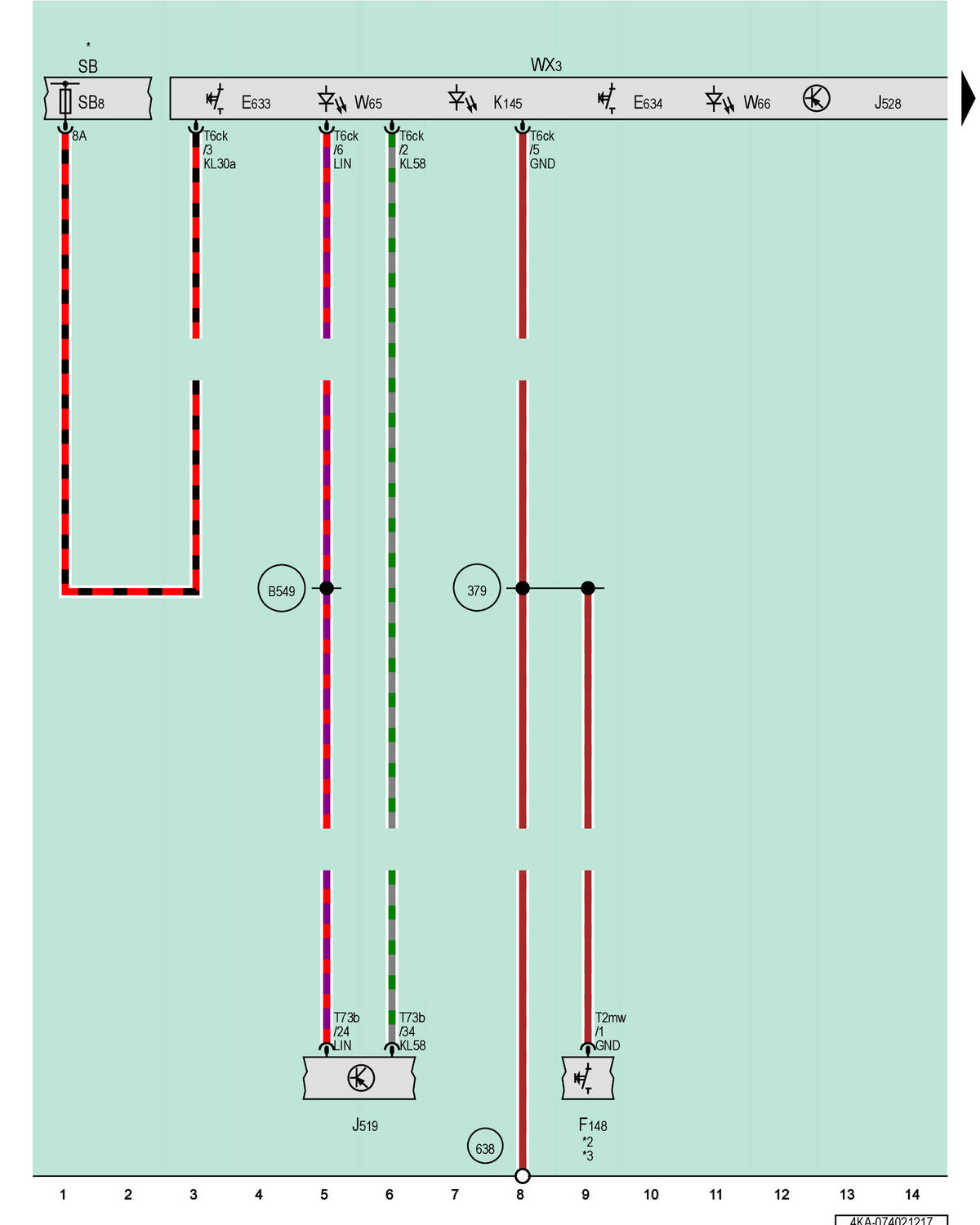

Vehicle Electrical System Control Module, Front Roof Module, Left Front Reading Lamp, Right Front Reading Lamp

Courtesy of AUDI OF AMERICA, LLC

E633

Left Front Reading Lamp Button

E634

Right Front Reading Lamp Button

F148

Front Passenger Vanity Mirror Lamp Contact Switch

J519

Vehicle Electrical System Control Module

J528

Roof Electronics Control Module

K145

Front Passenger Airbag -Disabled- Indicator Lamp

SB

Fuse Panel B

SB8

Fuse 8 (On Fuse Panel B)

T2mw

2-Pin Connector, Black

T6ck

6-Pin Connector, Black

T73b

73-Pin Connector, Black

WX3

Front Roof Module

W65

Left Front Reading Lamp

W66

Right Front Reading Lamp

379

Ground Connection 14 (in Main Wiring Harness)

638

Ground Connection on Right A-Pillar

B549

LIN Bus Connection 2 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles with Illuminated Vanity Mirror

*3

Refer to Applicable Wiring Diagram
