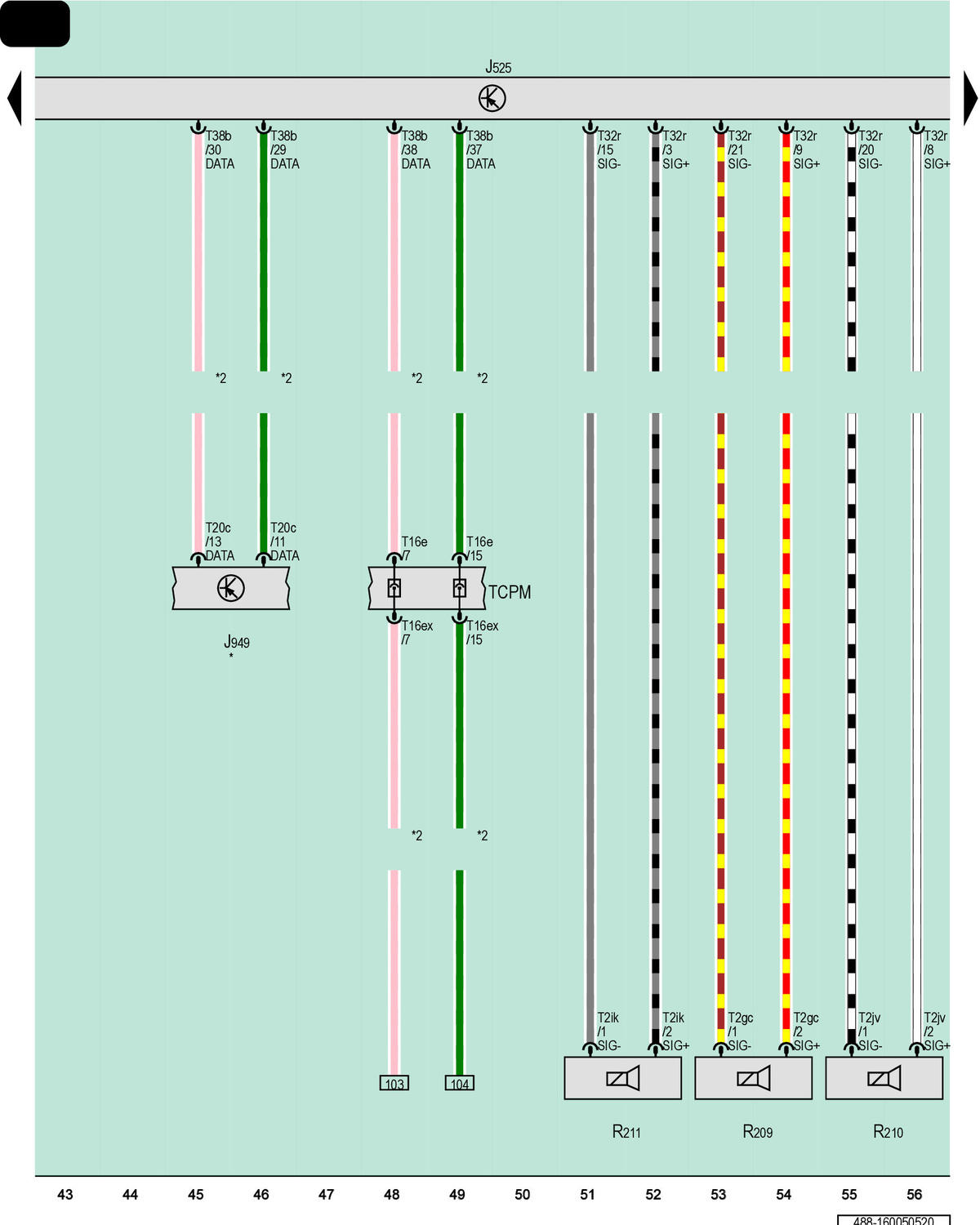

Digital Sound System Control Module, Control Module For Emergency Call Module And Communication Unit, Left Effects Speaker, Right Effects Speaker, Subwoofer

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

J949

Control Module for Emergency Call Module and Communication Unit

R209

Left Effects Speaker

R210

Right Effects Speaker

R211

Subwoofer

T2gc

2-Pin Connector, Black

T2ik

2-Pin Connector, Black

T2jv

2-Pin Connector, Black

T16e

16-Pin Connector, Black

T16ex

16-Pin Connector, Black

T20c

20-Pin Connector, Naturally Cloudy

T32r

32-Pin Connector, Black

T38b

38-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

*

Refer to Applicable Communication Wiring Diagram

*2

Audio Bus Data Bus Wire
