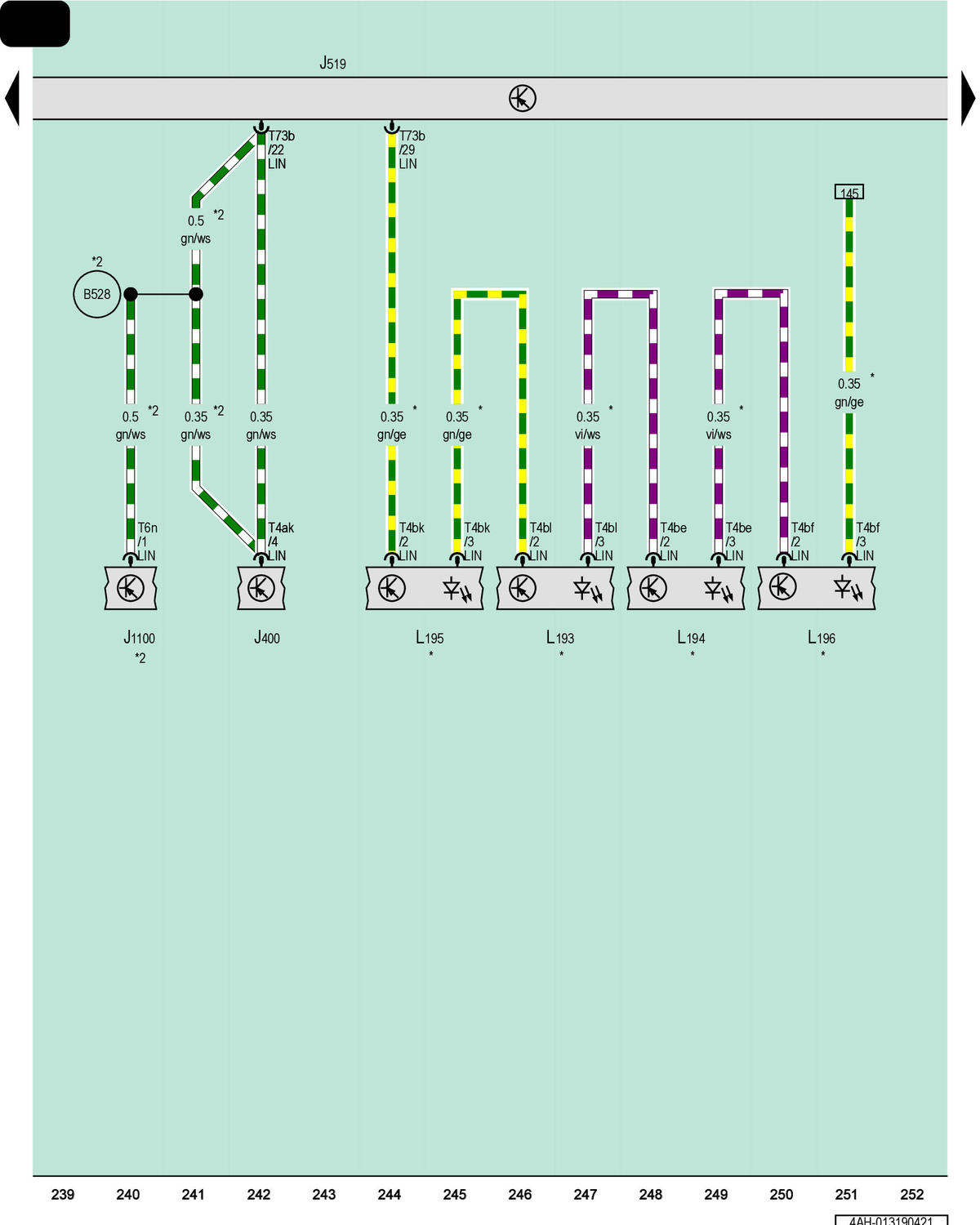

Wiper Motor Control Module, Vehicle Electrical System Control Module, Windshield Washer Pump Control Module, Front Center Console Ambient Lighting Bulb 1, Front Center Console Ambient Lighting Bulb 2, Front Center Console Ambient Lighting Bulb 3, Front Center Console Ambient Lighting Bulb 4

Courtesy of AUDI OF AMERICA, LLC

J400

Wiper Motor Control Module

J519

Vehicle Electrical System Control Module

J1100

Windshield Washer Pump Control Module

L193

Front Center Console Ambient Lighting Bulb 1

L194

Front Center Console Ambient Lighting Bulb 2

L195

Front Center Console Ambient Lighting Bulb 3

L196

Front Center Console Ambient Lighting Bulb 4

T4ak

4-Pin Connector, Black

T4be

4-Pin Connector, Black

T4bf

4-Pin Connector, Brown

T4bk

4-Pin Connector, Brown

T4bl

4-Pin Connector, Black

T6n

6-Pin Connector, Black

T73b

73-Pin Connector, Black, Black

B528

LIN Bus Connection 1 (in Main Wiring Harness)

*

For Vehicles with Ambient Lighting

*2

Optional Equipment
