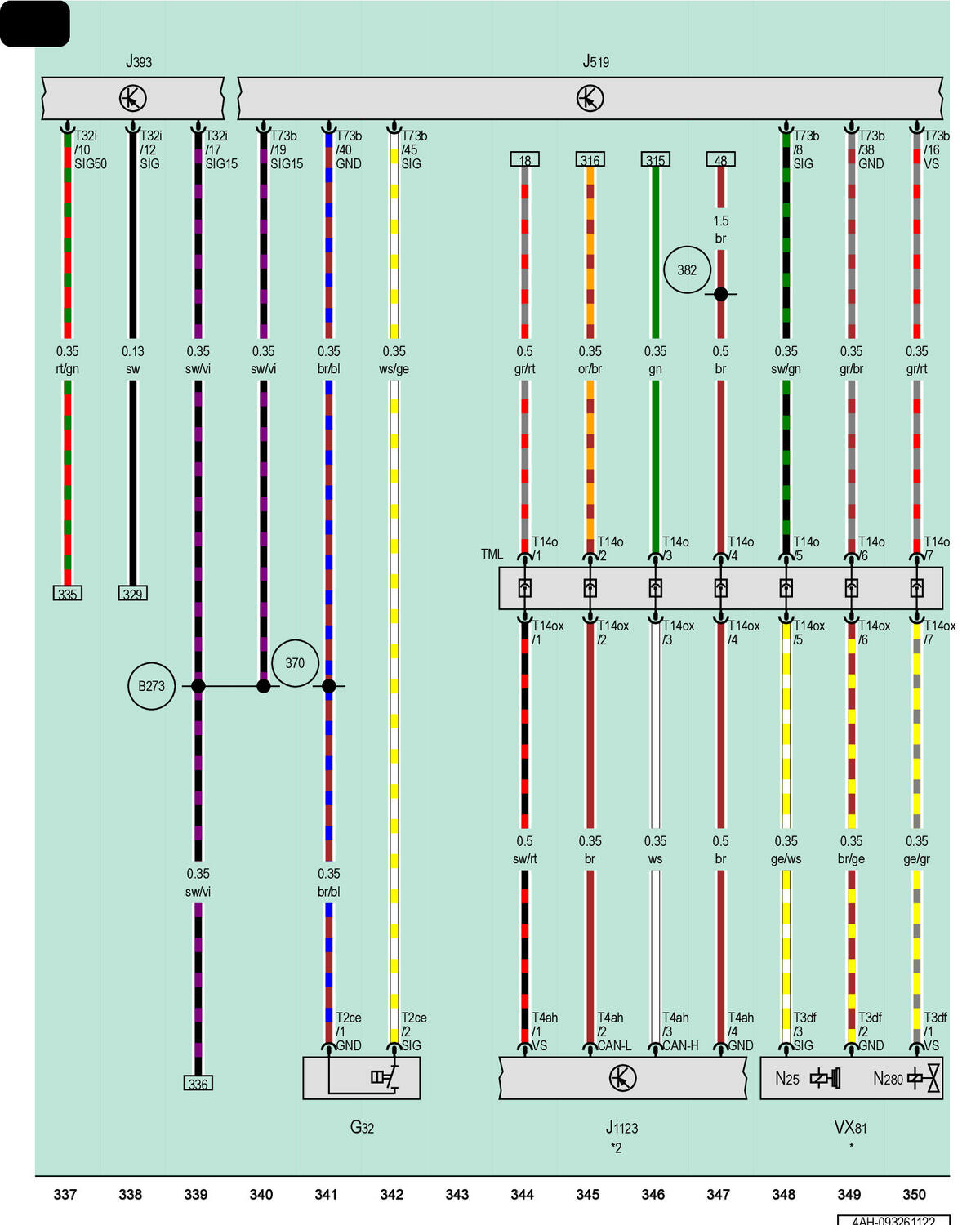

Engine Coolant Level Sensor, Comfort System Central Control Module, Vehicle Electrical System Control Module, Electric Compressor Control Module, A/C Compressor
G32
Engine Coolant Level Sensor
J393
Comfort System Central Control Module
J519
Vehicle Electrical System Control Module
J1123
Electric Compressor Control Module
N25
A/C Clutch
N280
A/C Compressor Regulator Valve
T2ce
2-Pin Connector, Black
T3df
3-Pin Connector, Black
T4ah
4-Pin Connector, Black
T14o
14-Pin Connector, Gray
T14ox
14-Pin Connector, Gray
T32i
32-Pin Connector, Naturally Cloudy, Black
T73b
73-Pin Connector, Black, Black
TML
Coupling Point in Engine/Motor Compartment, Left
VX81
A/C Compressor
370
Ground Connection 5 (in Main Wiring Harness)
382
Ground Connection 17 (in Main Wiring Harness)
B273
Positive Connection (15) (in Main Wiring Harness)
*
Pre-Wired Component
*2
Refer to Applicable Wiring Diagram for 48 Volt System
