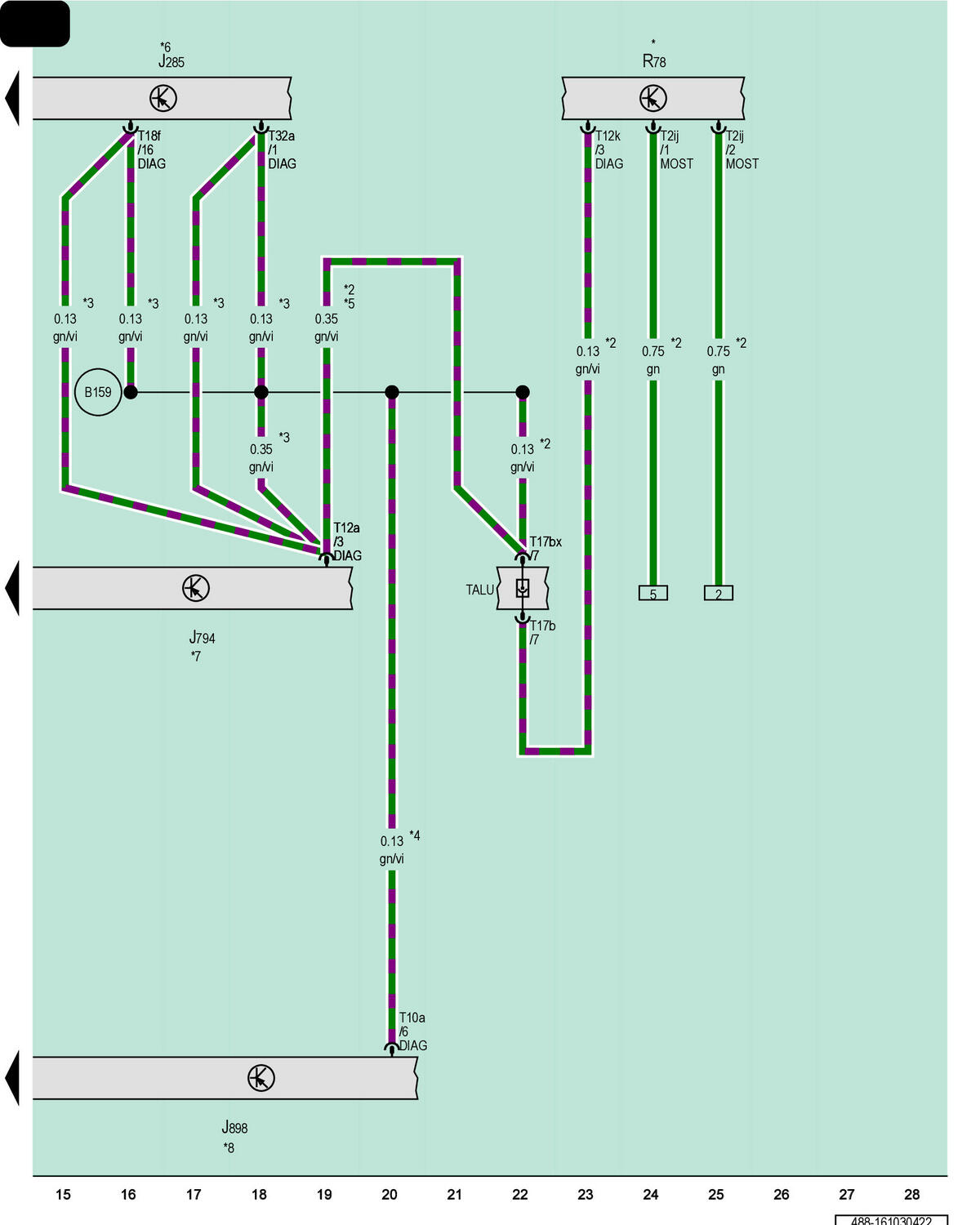

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module, TV Tuner

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module

J794

Information Electronics Control Module 1

J898

Windshield Projection Head Up Display Control Module

R78

TV Tuner

T2ij

2-Pin Connector, Black

T10a

10-Pin Connector, Black

T12a

12-Pin Connector, Gray

T12k

12-Pin Connector, Black

T17b

17-Pin Connector, Blue

T17bx

17-Pin Connector, Blue

T18f

18-Pin Connector, Black

T32a

32-Pin Connector, Gray

TALU

Coupling Point on Left A-Pillar, Bottom

B159

Diagnostic Connection (in Interior Wiring Harness)

*

Refer to the Applicable TV Tuner Wiring Diagram

*2

For Vehicles with TV Tuner

*3

Depending on Equipment

*4

For Vehicles with Windshield Projection

*5

For Vehicles Without a Navigation System

*6

Refer to Applicable Wiring Diagram for Instrument Cluster

*7

Refer to Applicable MMI (Information Electronics) Wiring Diagram

*8

Refer to Applicable Windshield Projection Wiring Diagram
