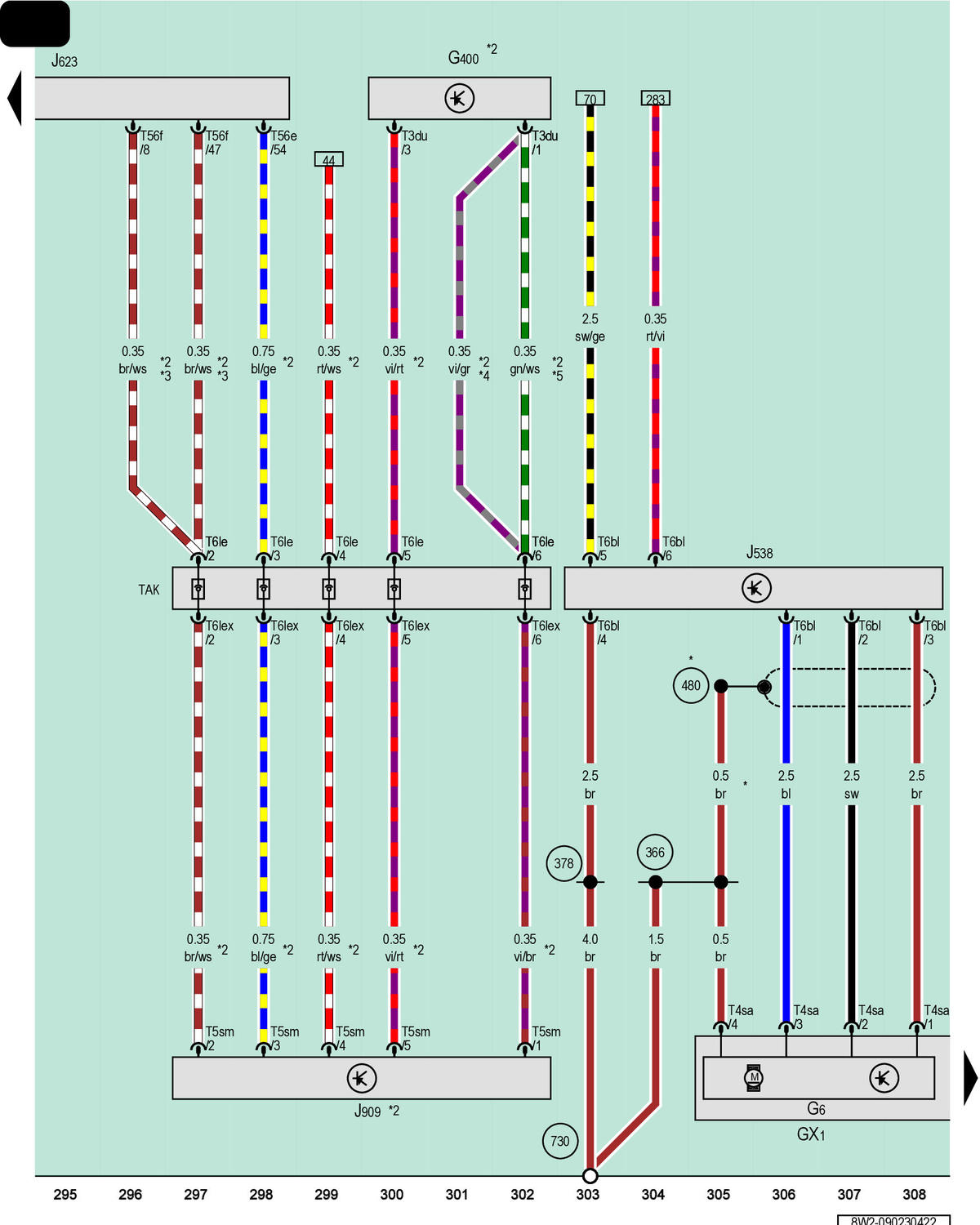

Fuel Delivery Unit, Fuel Tank Pressure Sensor, Fuel Pump Control Module, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module

Courtesy of AUDI OF AMERICA, LLC

GX1

Fuel Delivery Unit

G6

Transfer Fuel Pump

G400

Fuel Tank Pressure Sensor

J538

Fuel Pump Control Module

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front

J909

Fuel Tank Leak Detection Control Module

T3du

3-Pin Connector, Black

T4sa

4-Pin Connector, Black

T5sm

5-Pin Connector, Black

T6bl

6-Pin Connector, Black

T6le

6-Pin Connector, Green

T6lex

6-Pin Connector, Green

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

TAK

Fuel Tank Coupling Point

366

Ground Connection 1 (in Main Wiring Harness)

378

Ground Connection 13 (in Main Wiring Harness)

480

Ground Connection (in Fuel Tank Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

*

Sedan

*2

For USA Only

*3

Depending on Equipment

*4

Omitted as a Running Change

*5

Running Change
