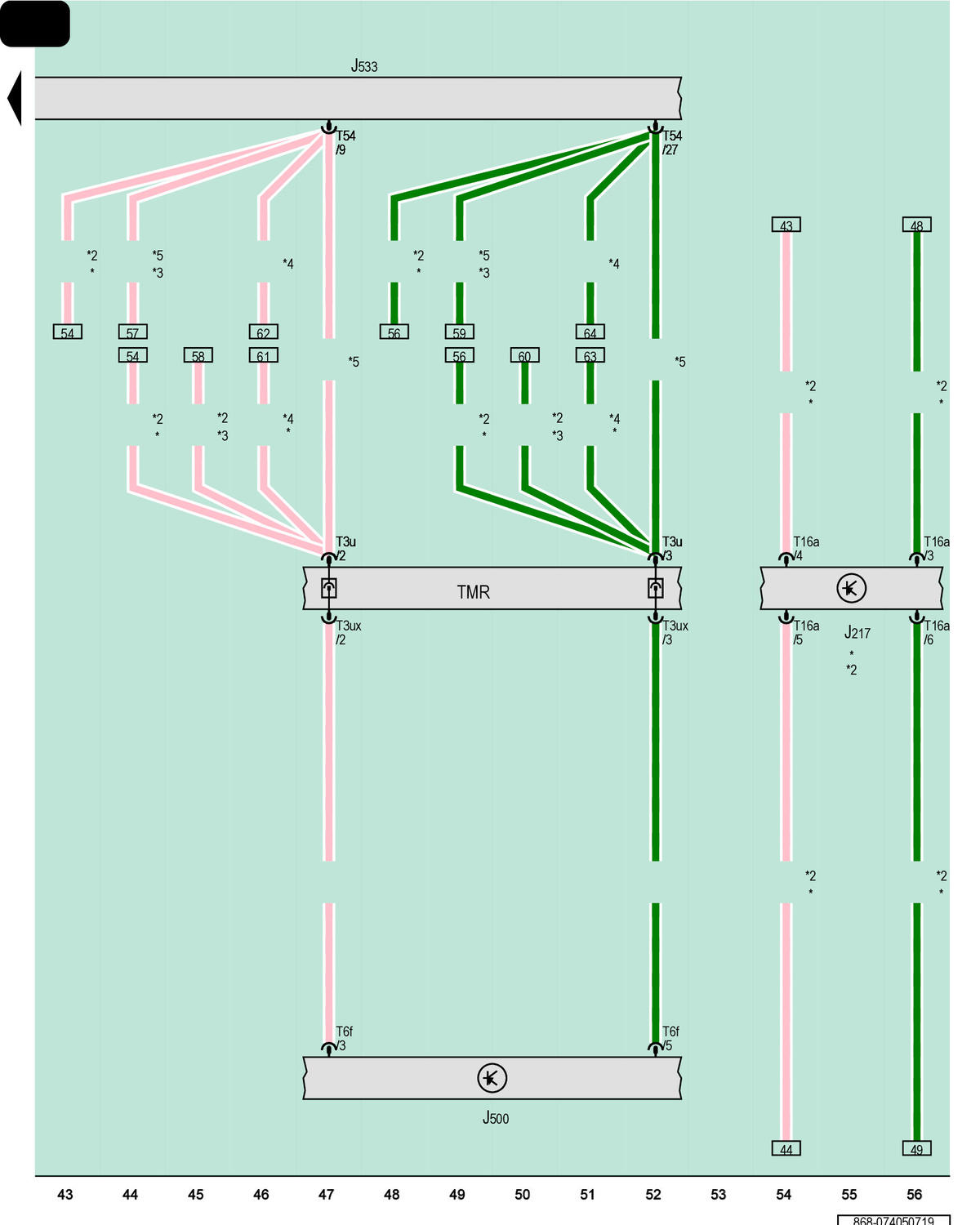

Transmission Control Module, Power Steering Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J217

Transmission Control Module

J500

Power Steering Control Module

J533

Data Bus on Board Diagnostic Interface

T3u

3-Pin Connector, Black

T3ux

3-Pin Connector, Black

T6f

6-Pin Connector, Black

T16a

16-Pin Connector, Black

T54

54-Pin Connector, Black

TMR

Coupling Point in Engine/Motor Compartment, Right

*

For Vehicles Without All Wheel Drive

*2

For Vehicles with Automatic Transmission

*3

For AWD Vehicles

*4

For Vehicles with Automatic Transmission (DSG)

*5

For Vehicles with a Manual Transmission
