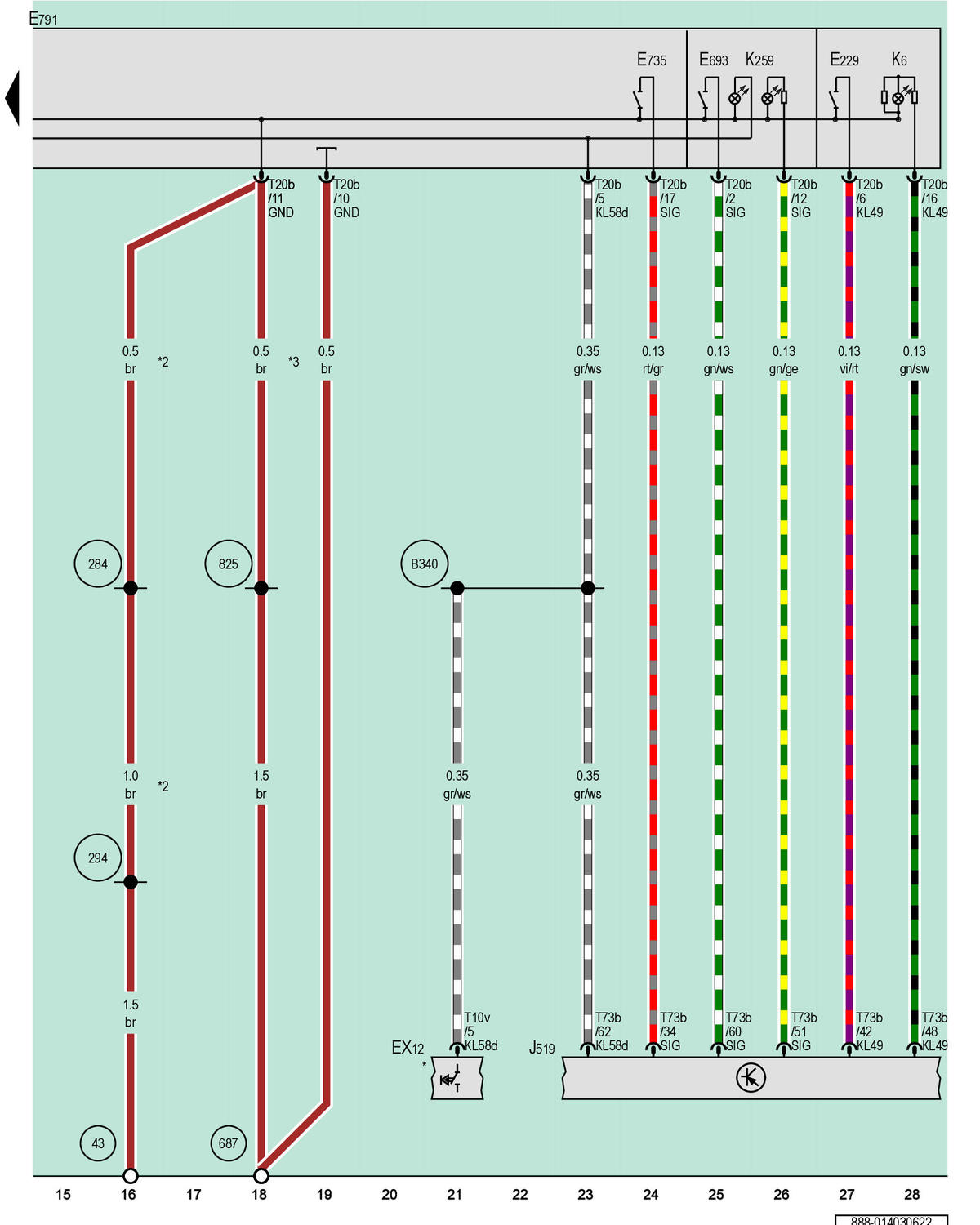

Parking Brake Button, Control Unit 1 For Driving And Convenience Functions, Vehicle Electrical System Control Module
EX12
Parking Brake Button
E229
Emergency Flasher Button
E693
Start/Stop Mode Button
E735
Driving Profile Selection Button
E791
Control Unit 1 for Driving and Convenience Functions
J519
Vehicle Electrical System Control Module
K6
Emergency Flasher Indicator Lamp
K259
Start/Stop Mode Indicator Lamp
T10v
10-Pin Connector, Red
T20b
20-Pin Connector, Black
T73b
73-Pin Connector, Black
43
Ground Connection on A-Pillar, Lower Right
284
Ground Connection 6 (in Interior Wiring Harness)
294
Ground Connection 9 (in Interior Wiring Harness)
687
Ground Connection 1 on Center Tunnel
825
Ground Connection 18 (in Interior Wiring Harness)
B340
Connection 58d (in Main Wiring Harness) 1
*
Refer to Applicable Brake System Wiring Diagram
*2
For LHD Vehicles
*3
For RHD Vehicles
