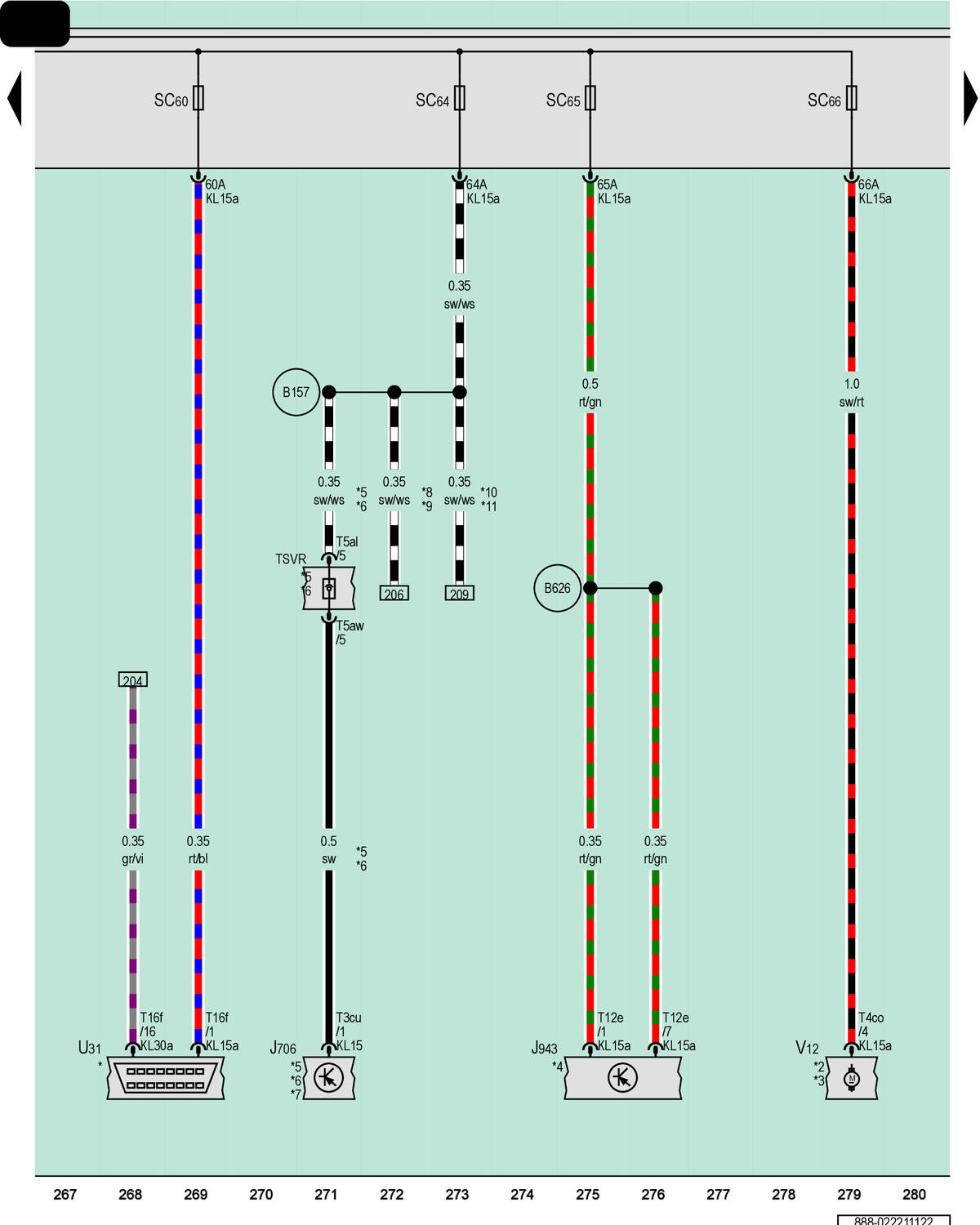

Seat Occupant Detection System Control Module, Engine Sound Generator Control Module, Fuse Panel C, Diagnostic Connection, Rear Window Wiper Motor
J706
Seat Occupant Detection System Control Module
J943
Engine Sound Generator Control Module
SC
Fuse Panel C
SC60
Fuse 60 (On Fuse Panel C)
SC64
Fuse 64 (On Fuse Panel C)
SC65
Fuse 65 (On Fuse Panel C)
SC66
Fuse 66 (On Fuse Panel C)
T3cu
3-Pin Connector, Black
T4co
4-Pin Connector, Black
T5al
5-Pin Connector, Black
T5aw
5-Pin Connector, Black
T12e
12-Pin Connector, Black
T16f
16-Pin Connector, Black
TSVR
Right Front Seat Coupling Station
U31
Diagnostic Connection
V12
Rear Window Wiper Motor
B157
Positive Connection 3 (15a) (in Interior Wiring Harness)
B626
Positive Connection 2 (15) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Data Bus Networking
*2
Refer to Applicable Wiring Diagram
*3
Sportback
*4
Refer to the Applicable Engine Sound Generator Wiring Diagram
*5
For USA Only
*6
From June 2021
*7
Refer to Applicable Airbag Wiring Diagram
*8
For Vehicles Without Ambient Lighting
*9
From April 2020
*10
For Vehicles with Illuminated Vanity Mirror
*11
For Vehicles with Ambient Lighting
