Fuel Tank Leak Detection Module, Vehicle Electrical System Control Module, Engine/Motor Control Module, Structure-Borne Sound Control Module

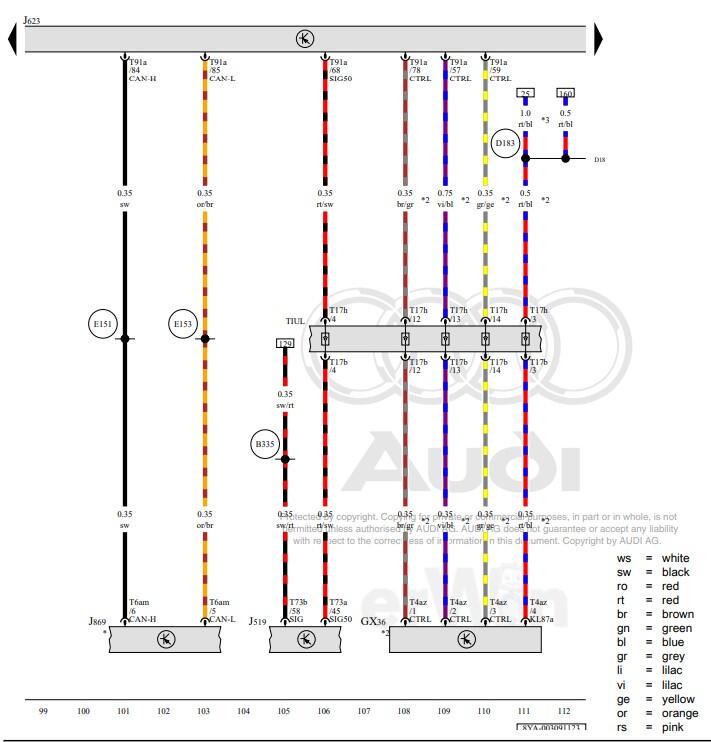

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

GX36

Fuel Tank Leak Detection Module

J519

Vehicle Electrical System Control Module

J623

Engine/Motor Control Module

J869

Structure-Borne Sound Control Module

T4az

4-Pin Connector, Black

T6am

6-Pin Connector, Black

T17b

17-Pin Connector, Black

T17h

17-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

T91a

91-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

B335

Connection 54 (in Main Wiring Harness) 1

D183

Connection 4 (87A) (in Engine/Motor Compartment Wiring Harness)

E151

Connection 1 (CAN Bus, Engine/Motor Control Module, High)

E153

Connection 1 (CAN Bus, Engine/Motor Control Module, Low)

Refer to Applicable Wiring Diagram

For LEV3/Tier 3 70 Emissions Standard

Diameter Depends on Equipment
