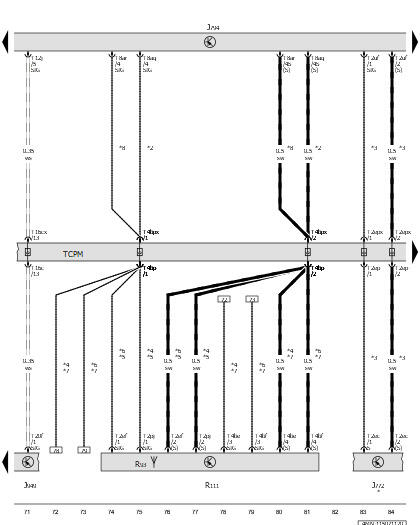

Rearview Camera System Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Antenna Amplifier 2
J772
Rearview Camera System Control Module
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
R93
Radio Antenna 2
R111
Antenna Amplifier 2
T2ec
2-Pin Connector, Blue
T2ef
2-Pin Connector, Blue
T2ep
2-Pin Connector, Purple
T2epx
2-Pin Connector, Purple
T2pj
2-Pin Connector, Naturally Cloudy
T2uf
2-Pin Connector, Green
T4be
4-Pin Connector, Purple
T4bf
4-Pin Connector, Blue
T4bp
4-Pin Connector, White
T4bpx
4-Pin Connector, White
T8aq
8-Pin Connector, Blue
T8ar
8-Pin Connector, Black
T12j
12-Pin Connector, Blue
T16c
16-Pin Connector, Black
T16cx
16-Pin Connector, Black
T20f
20-Pin Connector, Naturally Cloudy
TCPM
Coupling Point on Instrument Panel, Center
*
Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*2
For Vehicles Without US Equipment
*3
For Vehicles with Rearview Camera System
*4
For Vehicles Without Japan Equipment
*5
For Vehicles Without TV Reception
*6
For Vehicles with Japan Equipment
*7
For Vehicles with TV Tuner
*8
For Vehicles with US Equipment
