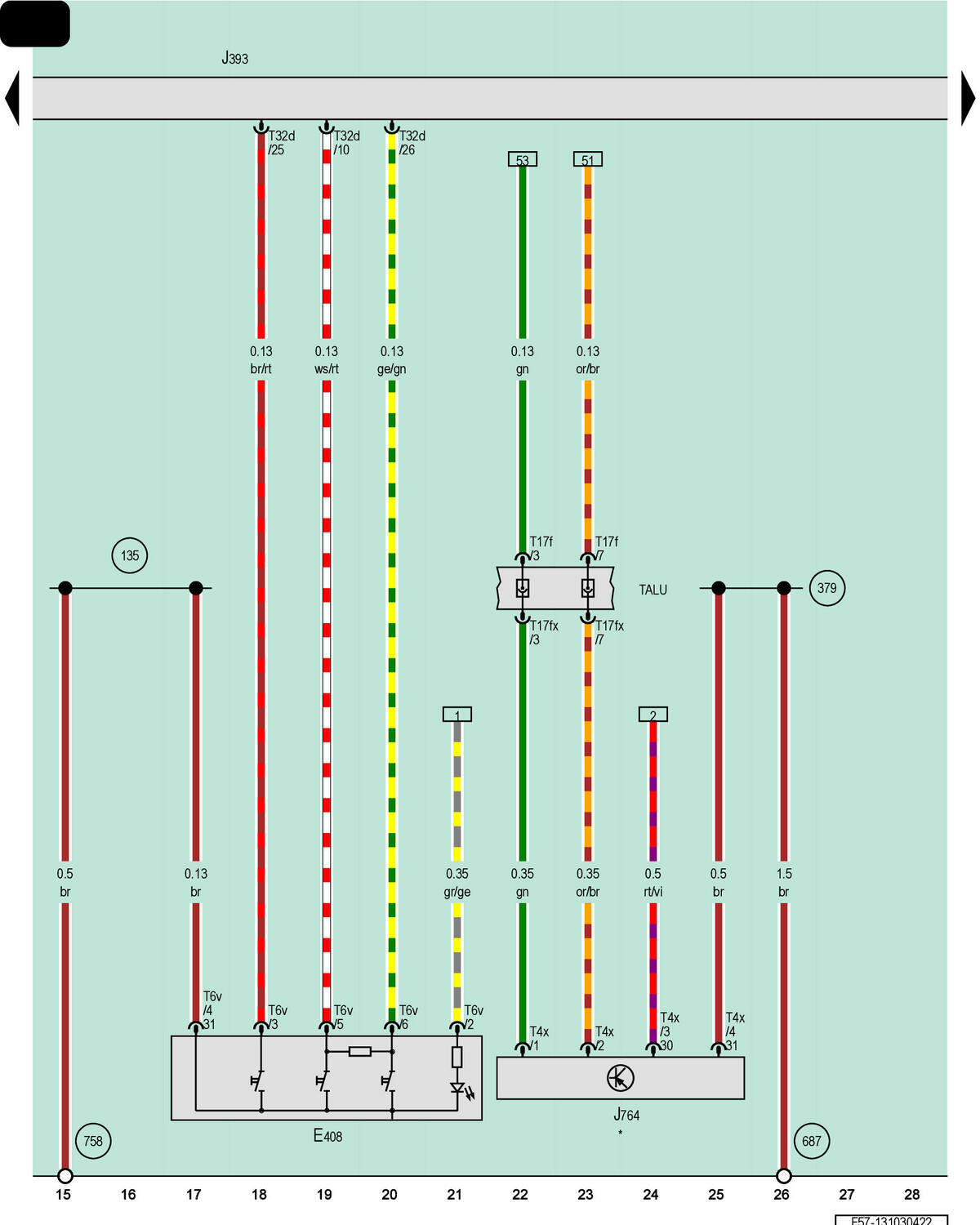

Access/Start Authorization Button, Comfort System Central Control Module, Electronic Steering Column Lock Control Module
E408
Access/Start Authorization Button
J393
Comfort System Central Control Module
J764
Electronic Steering Column Lock Control Module
T4x
4-Pin Connector, Black
T6v
6-Pin Connector, Black
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T32d
32-Pin Connector, Blue
TALU
Coupling Point on Left A-Pillar, Bottom
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
379
Ground Connection 14 (in Main Wiring Harness)
687
Ground Connection 1 on Center Tunnel
758
Ground Connection 3 on Center Tunnel
*
Country-Specific
