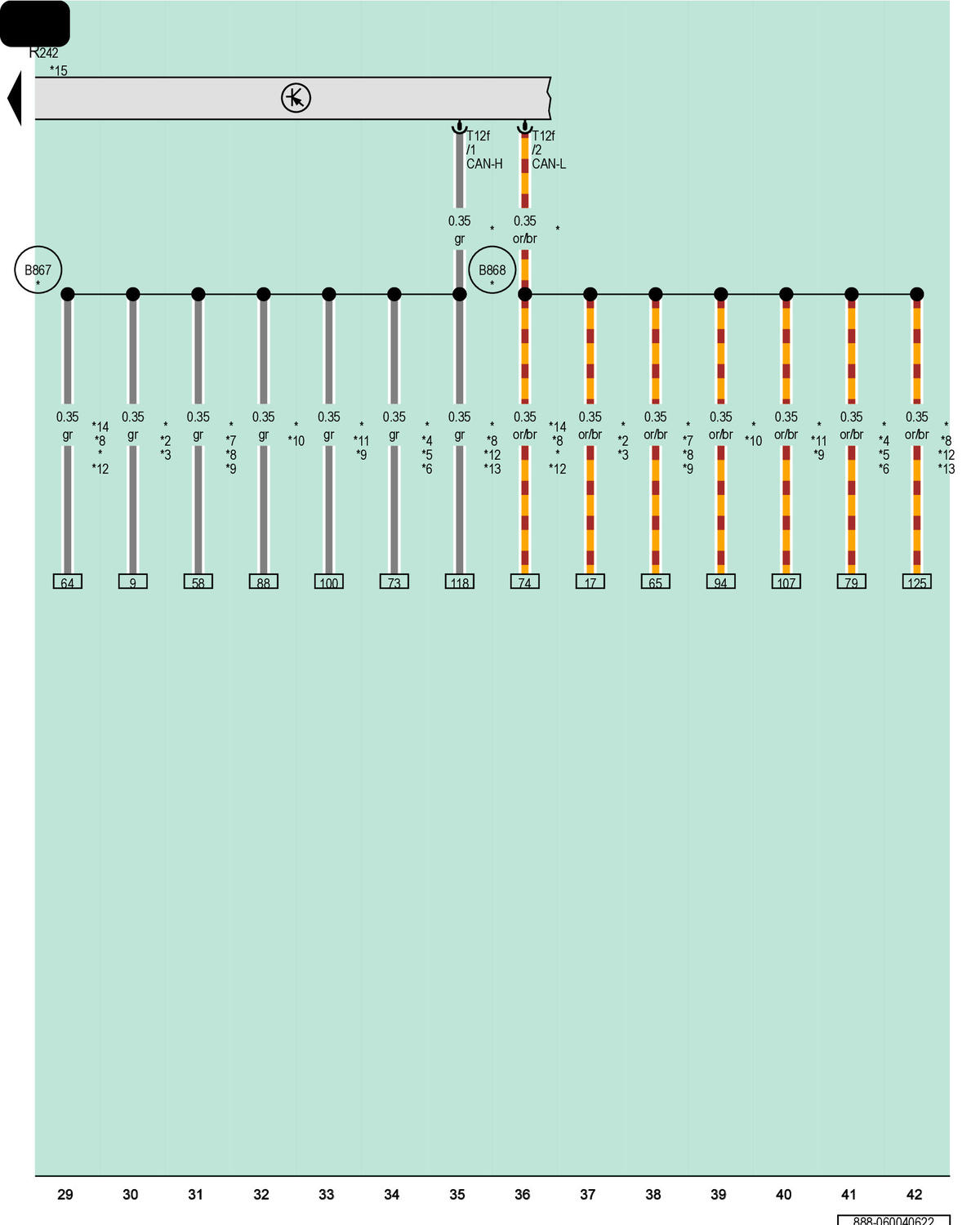

Driver Assistance Systems Front Camera

Courtesy of AUDI OF AMERICA, LLC

R242

Driver Assistance Systems Front Camera

T12f

12-Pin Connector, Brown

B867

Driver Assistance Systems CAN Bus High Connection 2 (in Main Wiring Harness)

B868

Driver Assistance Systems CAN Bus Low Connection 2 (in Main Wiring Harness)

*

For Vehicles with Driver Assistance Systems Front Camera

*2

For Vehicles with Headlamp Range Control Module

*3

For Vehicles with Control Module for Adaptive Cruise Control

*4

For Vehicles Without Headlamp Range Control Module

*5

For Vehicles Without Control Module for Adaptive Cruise Control

*6

CAN Bus Connection Wire

*7

For Vehicles Without Rearview Camera System

*8

For Vehicles without Peripheral Camera

*9

For Vehicles Without Lane Change Assistance Control Module

*10

For Vehicles with Peripheral Camera

*11

For Vehicles with Rearview Camera System

*12

For Vehicles with Lane Change Assistance Control Module

*13

Sportback

*14

Sedan

*15

Refer to the Applicable Driver Assistance Systems Front Camera Wiring Diagram
