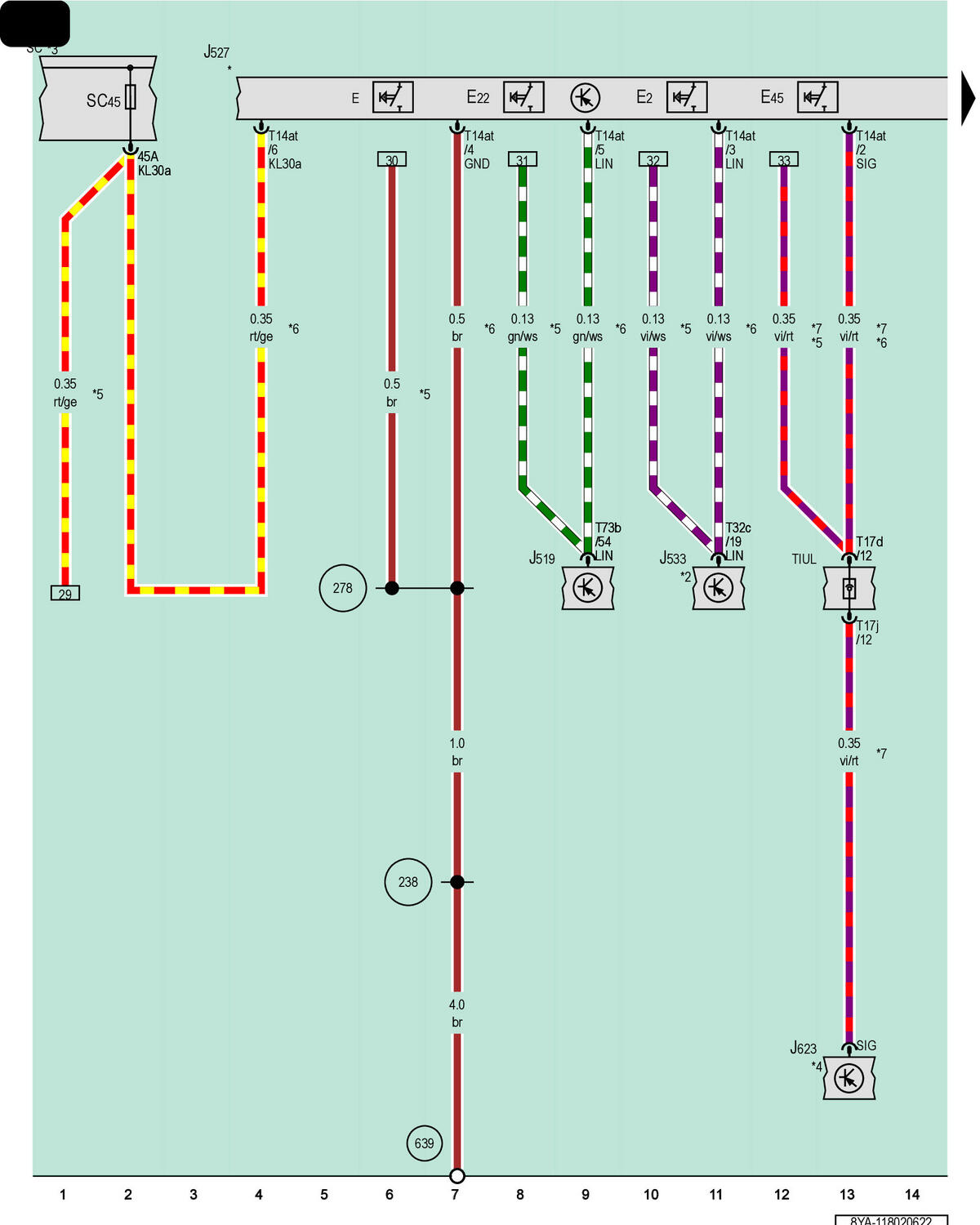

Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Fuse Panel C
E
Windshield Wiper Switch
E2
Turn Signal Switch
E22
Windshield Wiper Intermittent Mode Switch
E45
Cruise Control Switch
J519
Vehicle Electrical System Control Module
J527
Steering Column Electronics Control Module
J533
Data Bus on Board Diagnostic Interface
J623
Engine/Motor Control Module
SC
Fuse Panel C
SC45
Fuse 45 (On Fuse Panel C)
T14at
14-Pin Connector, Brown
T17d
17-Pin Connector, Red
T17j
17-Pin Connector, Red
T32c
32-Pin Connector, Black
T73b
73-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
238
Ground Connection 1 (in Interior Wiring Harness)
278
Ground Connection 4 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
*
Refer to Applicable Steering Wheel Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Data Bus Networking
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*4
Refer to Applicable Engine Wiring Diagram
*5
From November 2021
*6
Through November 2021
*7
For Vehicles with Cruise Control System
