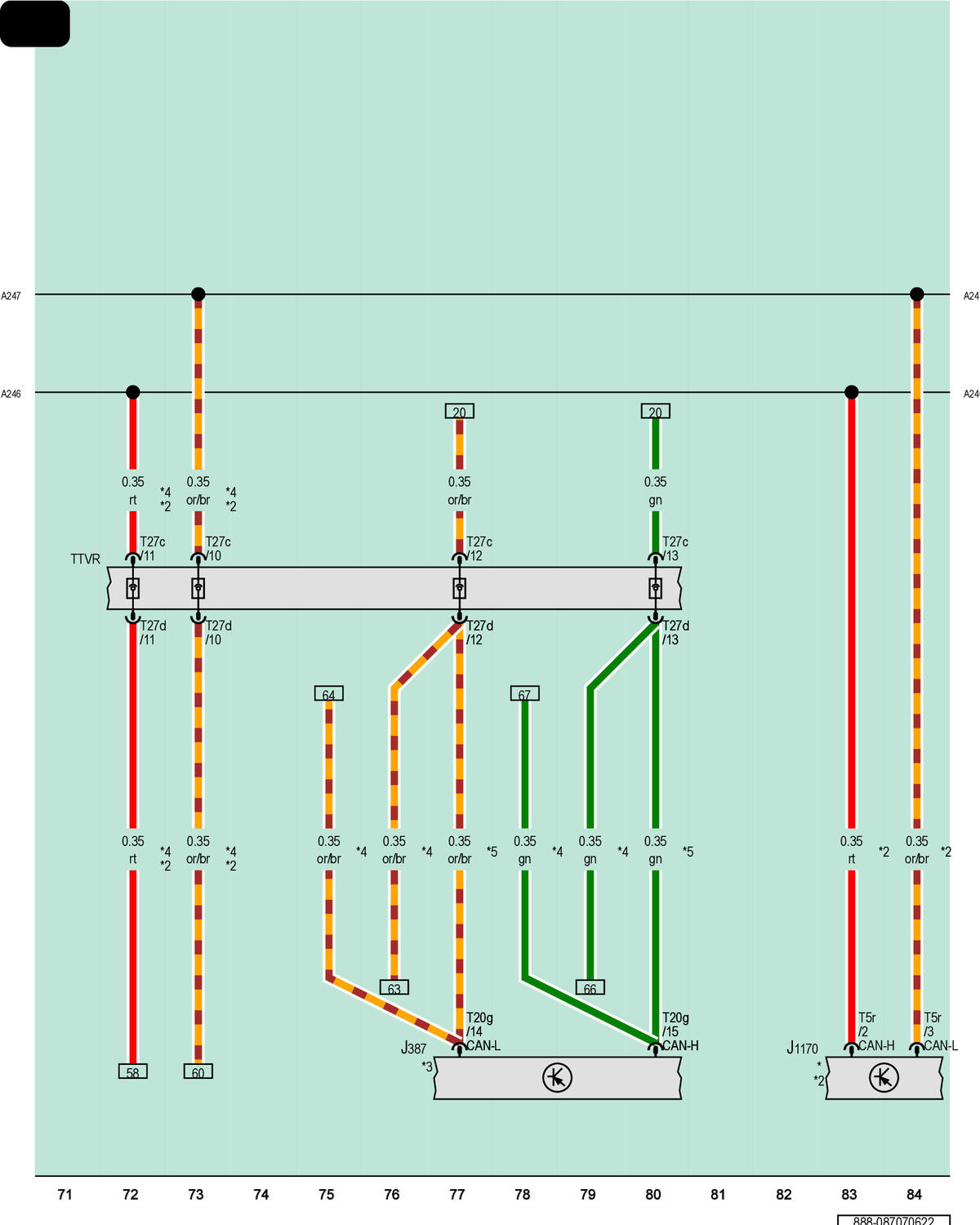

Front Passenger Door Control Module, Near Field Communication Control Module 2

Courtesy of AUDI OF AMERICA, LLC

J387

Front Passenger Door Control Module

J1170

Near Field Communication Control Module 2

T5r

5-Pin Connector, Black

T20g

20-Pin Connector, White

T27c

27-Pin Connector, Black

T27d

27-Pin Connector, Black

TTVR

Right Front Door Coupling Point

A246

CAN Bus High Connection 1 (in Engine/Motor Compartment Wiring Harness)

A247

CAN Bus Low Connection 1 (in Engine/Motor Compartment Wiring Harness)

*

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*2

For Vehicles with Near Field Communication

*3

Refer to Applicable Front Passenger Door Wiring Diagram

*4

For RHD Vehicles

*5

For LHD Vehicles
