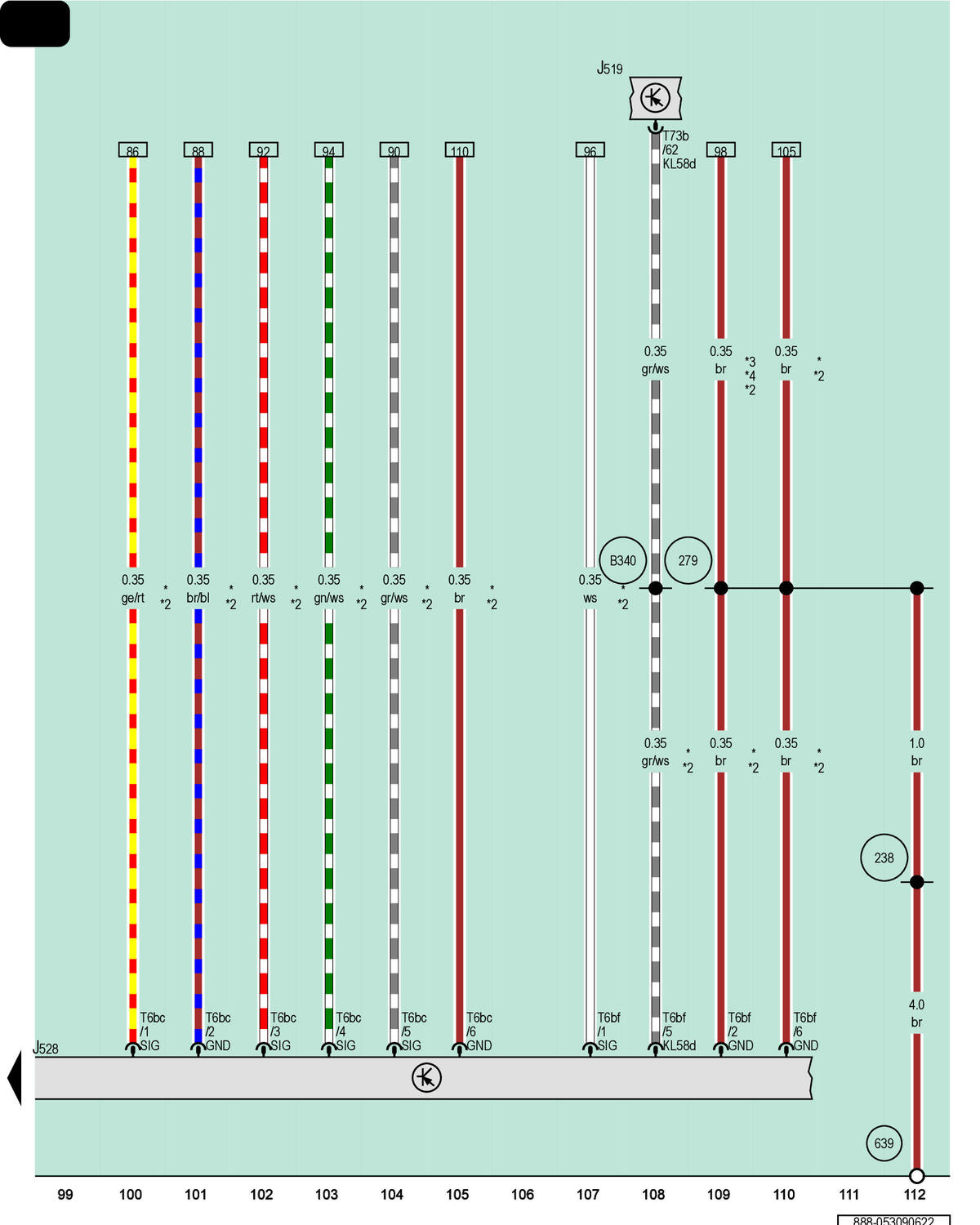

Vehicle Electrical System Control Module, Roof Electronics Control Module
J519
Vehicle Electrical System Control Module
J528
Roof Electronics Control Module
T6bc
6-Pin Connector, Black
T6bf
6-Pin Connector, Brown
T73b
73-Pin Connector, Black
238
Ground Connection 1 (in Interior Wiring Harness)
279
Ground Connection 5 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
B340
Connection 58d (in Main Wiring Harness) 1
*
For Vehicles Without Ambient Lighting
*2
For Vehicles with Emergency Call Function
*3
For Vehicles with Ambient Lighting
*4
For Vehicles with Illuminated Vanity Mirror
