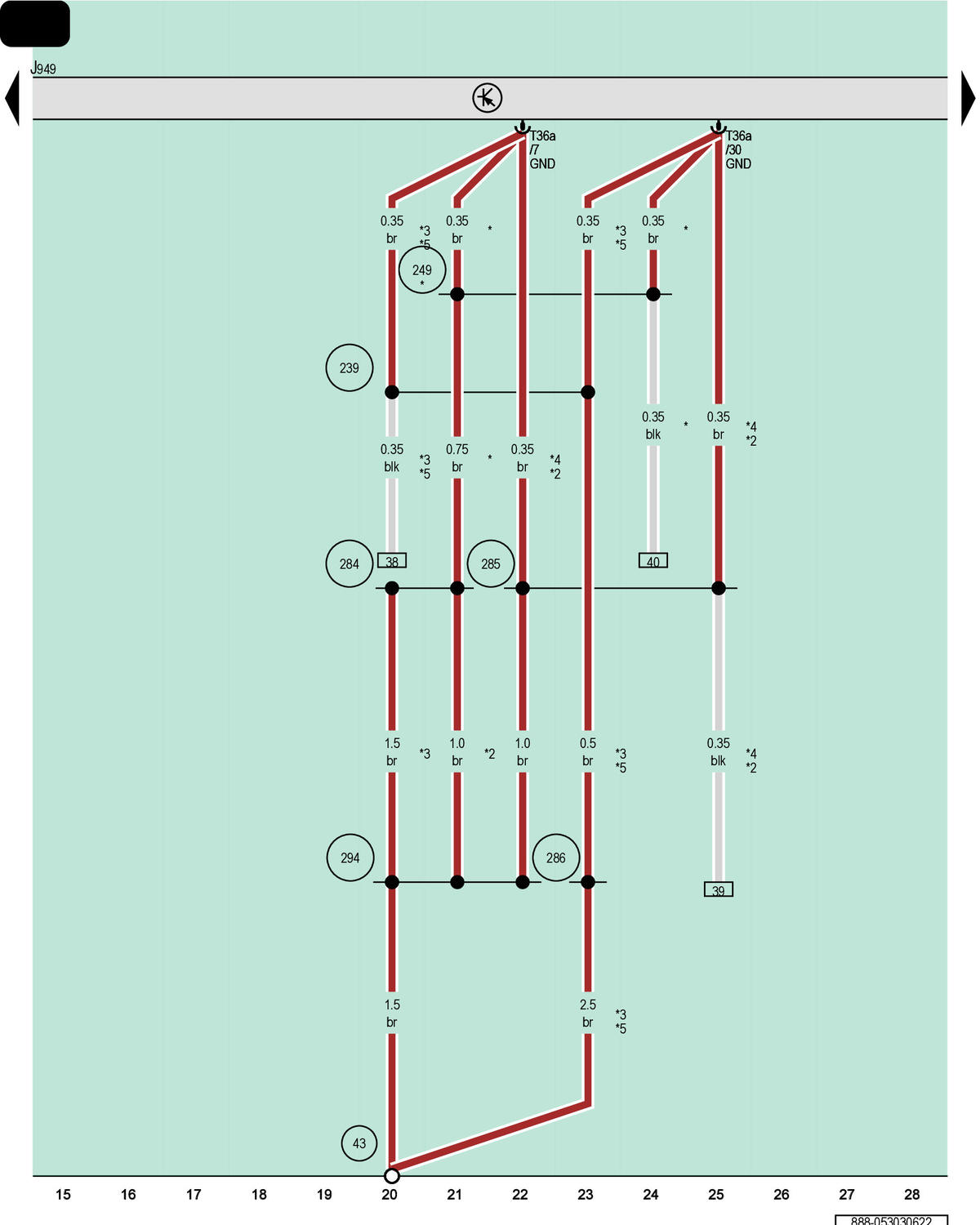

Control Module For Emergency Call Module And Communication Unit
J949
Control Module for Emergency Call Module and Communication Unit
T36a
36-Pin Connector, Black
43
Ground Connection on A-Pillar, Lower Right
239
Ground Connection (in Taxi Alarm System Wiring Harness)
249
Ground Connection 2 (in Interior Wiring Harness)
284
Ground Connection 6 (in Interior Wiring Harness)
285
Ground Connection 7 (in Interior Wiring Harness)
286
Ground Connection 8 (in Interior Wiring Harness)
294
Ground Connection 9 (in Interior Wiring Harness)
*
Through April 2020
*2
For LHD Vehicles
*3
For RHD Vehicles
*4
From April 2020
*5
From June 2022
