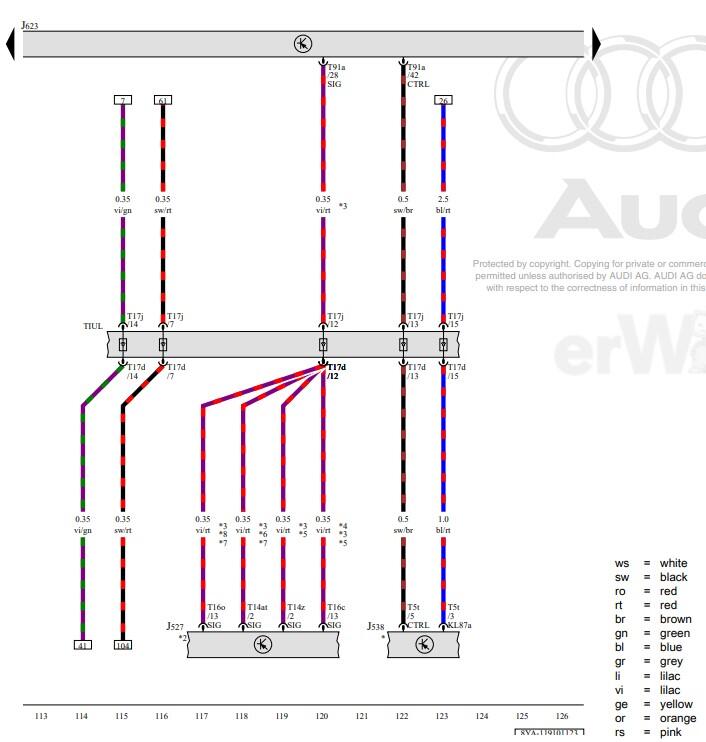

Steering Column Electronics Control Module, Fuel Pump Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J527

Steering Column Electronics Control Module

J538

Fuel Pump Control Module

J623

Engine/Motor Control Module

T5t

5-Pin Connector, Black

T14at

14-Pin Connector, Brown

T14z

14-Pin Connector, Black

T16c

16-Pin Connector, Black

T16o

16-Pin Connector, Black

T17d

17-Pin Connector, Red

T17j

17-Pin Connector, Red

T91a

91-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

*

Refer to Applicable Fuel System Wiring Diagram

*2

Refer to Applicable Steering Column Electronics Wiring Diagram

*3

For Vehicles with Cruise Control System

*4

For Vehicles Without Heated Steering Wheel

*5

Not for USA

*6

Through November 2021

*7

For USA Only

*8

From November 2021
