Overview - Drivetrain

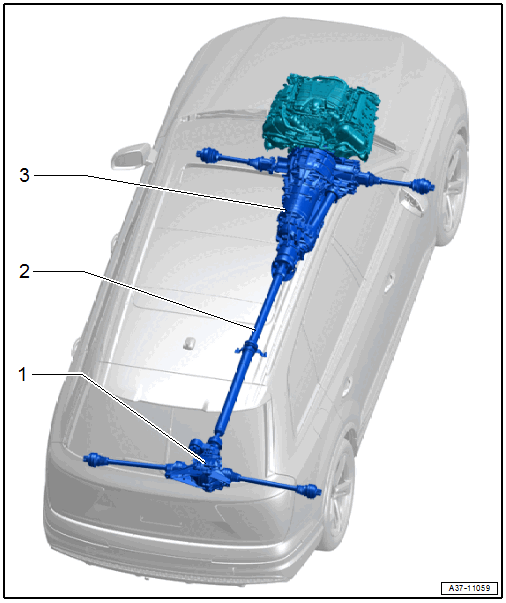

Fig 1: Overview - Drivetrain
GWWA37-11059Courtesy of AUDI OF AMERICA, LLC
  1. Rear Final Drive
  2. Driveshaft
  3. Automatic Transmission 0D6
