Overview - Assembly Mounts

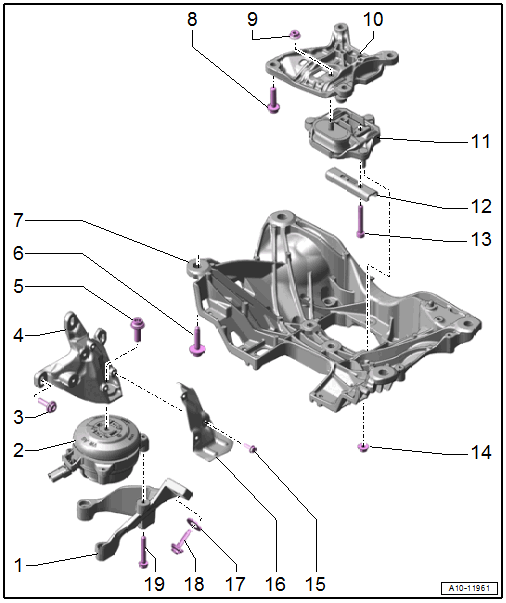

Fig 1: Exploded View Of Transmission Mount

Courtesy of \

Mount
- For the side transmission mount
Side Transmission Mount
- With
  - Transmission Mount Valve 1 -N262- right
  - Transmission Mount Valve 2 -N263- left
- Removing and Installing. Refer to appropriate Service Information .
Bolt
- 20 Nm
Left Transmission Support
- Removing and Installing. Refer to appropriate Service Information .
Bolt
- 55 Nm
Bolt
- 55 Nm
Tunnel Crossmember
- Removing and Installing. Refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .
Bolt
- 40 Nm
Nut
- 20 Nm
- Only remove if the transmission mount must be separated from the transmission support
Transmission Support
- Removing and Installing. Refer to appropriate Service Information .
Transmission Mount
- Removing and Installing. Refer to appropriate Service Information .
Stop
- For the rear transmission mount
Bolt
- 20 Nm +90°
- Replace after removing
- Only remove if the transmission mount must be separated from the transmission support
Nut
- 20 Nm
Bolt
- 10 Nm
Heat Shield
Washer
Bolt
- 30 Nm
Bolt
- 20 Nm
