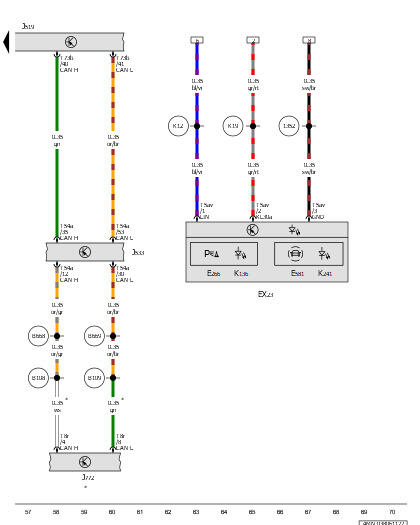

Center Console Switch Module 1, Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Rearview Camera System Control Module
EX23
Center Console Switch Module 1
E266
Parking Aid Button
E581
Parallel Parking Assistance Button
J519
Vehicle Electrical System Control Module
J533
Data Bus on Board Diagnostic Interface
J772
Rearview Camera System Control Module
K136
Parking Aid Indicator Lamp
K241
Parallel Parking Assistance Indicator Lamp
T5av
5-Pin Connector, Black
T8r
8-Pin Connector, Black
T54a
54-Pin Connector, Black
T73b
73-Pin Connector, Black, Naturally Cloudy
1352
Ground Connection 5 (in Center Console Wiring Harness)
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B668
CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669
CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
K12
LIN Bus Connection (in Center Console Wiring Harness)
K19
Connection 2 (30) (in Center Console Wiring Harness)
*
For Vehicles with Rearview Camera System
