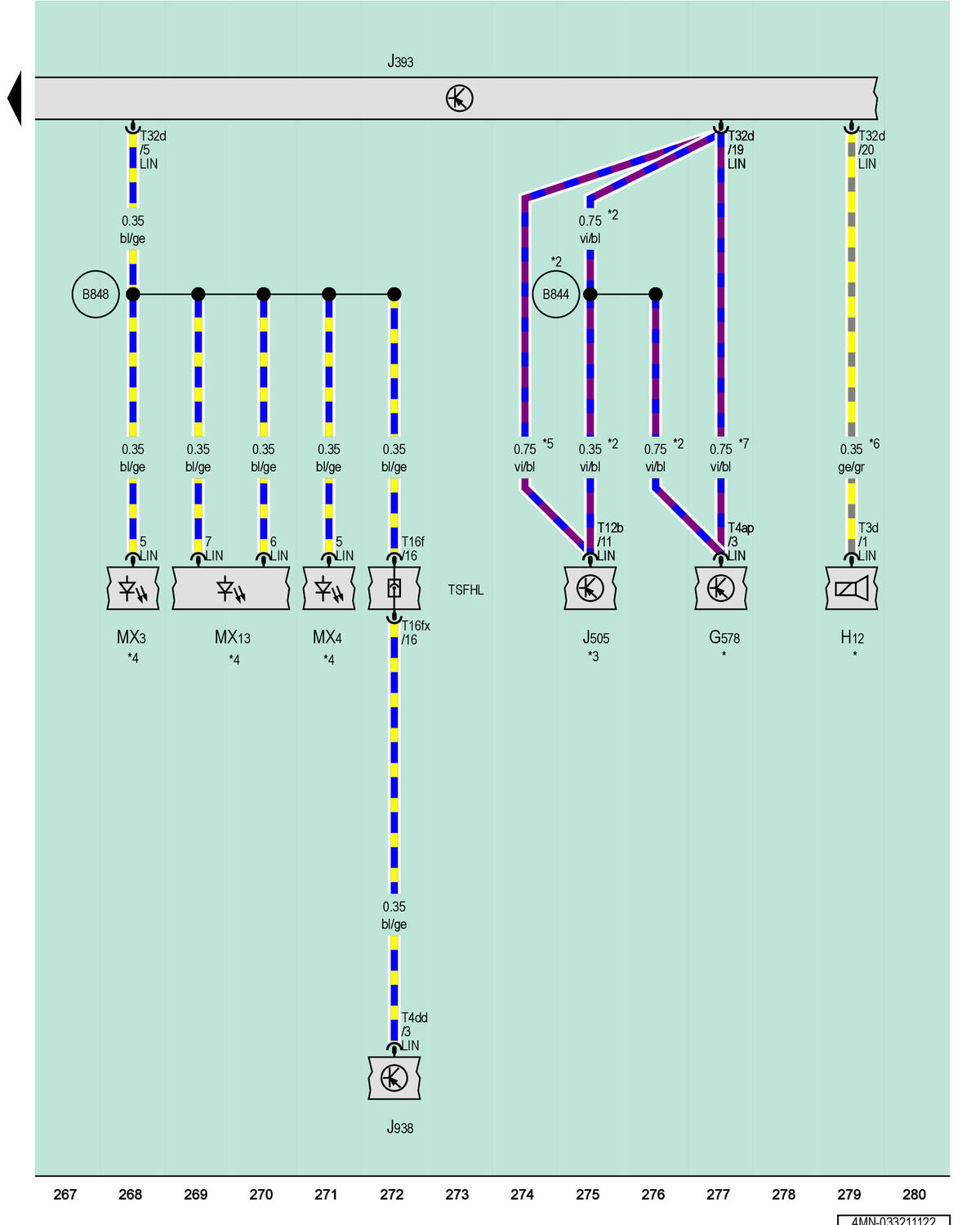

Anti-Theft Alarm System Sensor, Alarm Horn, Comfort System Central Control Module, Windshield Defogger Control Module, Power Rear Lid Opening Control Module, Left Tail Lamp, Right Tail Lamp, Center Tail Lamp
G578
Anti-Theft Alarm System Sensor
H12
Alarm Horn
J393
Comfort System Central Control Module
J505
Windshield Defogger Control Module
J938
Power Rear Lid Opening Control Module
MX3
Left Tail Lamp
MX4
Right Tail Lamp
MX13
Center Tail Lamp
T3d
3-Pin Connector, Black
T4ap
4-Pin Connector, Black
T4dd
4-Pin Connector, Black
T12b
12-Pin Connector, Black
T16f
16-Pin Connector, Brown
T16fx
16-Pin Connector, Brown
T32d
32-Pin Connector, Naturally Cloudy
TSFHL
Coupling Point on Left Rear Bumper
B844
LIN Bus Connection 10 (in Main Wiring Harness)
B848
LIN Bus Connection 12 (in Main Wiring Harness)
*
Refer to the Applicable Convenience System and Anti-Theft Alarm System Wiring Diagram
*2
For Vehicles with Anti-Theft Alarm System and Interior Monitoring and Towing Prevention
*3
Refer to Applicable Windshield Defogger Wiring Diagram
*4
Refer to Applicable Tail Lamp Wiring Diagram
*5
For Vehicles with Windshield Defogger
*6
For Vehicles with Anti-Theft Alarm System
*7
For Vehicles with Anti-Theft Alarm System and Towing Prevention
