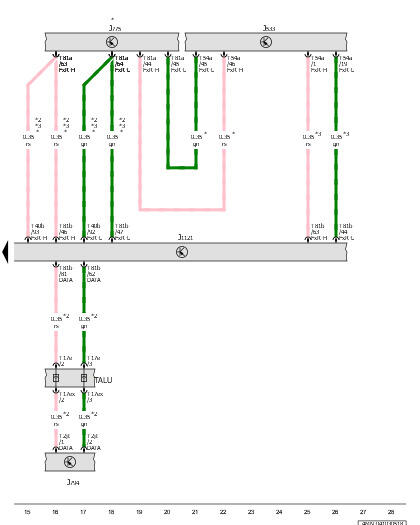

Data Bus On Board Diagnostic Interface, Drivetrain Control Module, Information Electronics Control Module 1, Driver Assistance Systems Control Module

Courtesy of AUDI

J533

Data Bus on Board Diagnostic Interface

J775

Drivetrain Control Module

J794

Information Electronics Control Module 1

J1121

Driver Assistance Systems Control Module

T2jt

2-Pin Connector, Black

T17e

17-Pin Connector, Blue

T17ex

17-Pin Connector, Blue

T40b

40-Pin Connector, Black

T54a

54-Pin Connector, Black

T81a

81-Pin Connector, Black

T81b

81-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

*

For Vehicles with Level Control System

*2

Depending on Equipment

*3

Through June 2020

*4

For Driver Assistance System

*5

From June 2020
