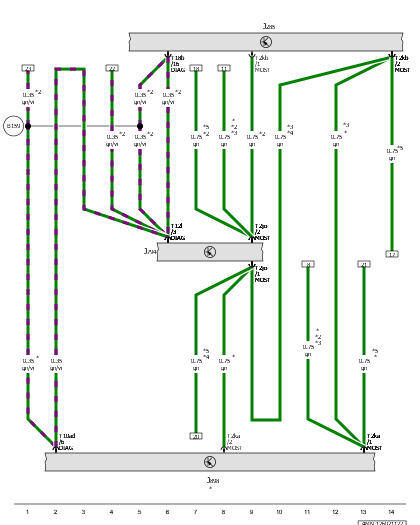

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module

Courtesy of AUDI

J285

Instrument Cluster Control Module

J794

Information Electronics Control Module 1

J898

Windshield Projection Head Up Display Control Module

T2jo

2-Pin Connector, Black

T2ka

2-Pin Connector, Black

T2kb

2-Pin Connector, Black

T10ad

10-Pin Connector, Black

T12l

12-Pin Connector, Gray

T18b

18-Pin Connector, Black

B159

Diagnostic Connection (in Interior Wiring Harness)

*

For Vehicles with Windshield Projection

*2

Depending on Equipment

*3

For Vehicles Without TV Tuner

*4

For Vehicles Without Windshield Projection

*5

For Vehicles with TV Tuner
