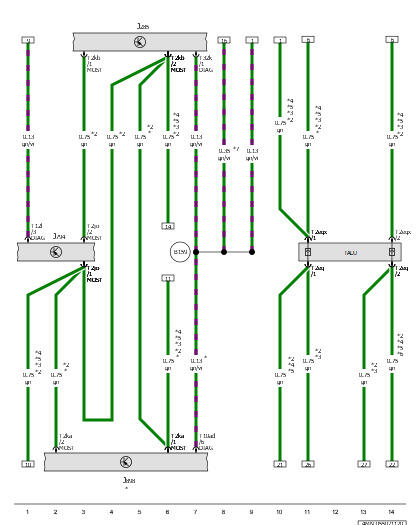

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module
J285
Instrument Cluster Control Module
J794
Information Electronics Control Module 1
J898
Windshield Projection Head Up Display Control Module
T2eq
2-Pin Connector, Black
T2eqx
2-Pin Connector, Black
T2jo
2-Pin Connector, Black
T2ka
2-Pin Connector, Black
T2kb
2-Pin Connector, Black
T10ad
10-Pin Connector, Black
T12l
12-Pin Connector, Gray
T32k
32-Pin Connector, Gray
TALU
Coupling Point on Left A-Pillar, Bottom
B159
Diagnostic Connection (in Interior Wiring Harness)
*
For Vehicles with Windshield Projection
*2
Fiber Optic Cable
*3
For Vehicles with TV Tuner
*4
For Vehicles with Bang & Olufsen Sound System
*5
For Vehicles with Bose Sound System
*6
For Vehicles Without TV Tuner
*7
Depending on Equipment
