Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING, A6: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

All vehicles except RS 6:

-- Release the retainers in the direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Release and remove the shield -2- on the Lane Change Assistance Control Module -J769- -1-.

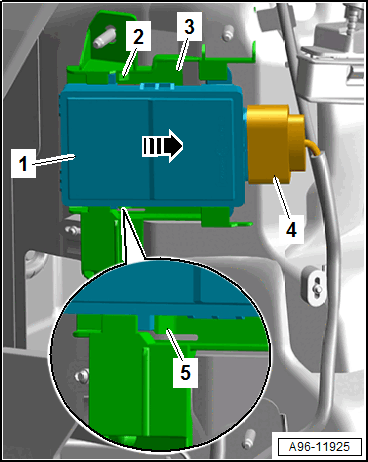

Lane Change Assistance Control Module -J769- :

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -2 and 5- with a screwdriver.

-- Remove the lane change assistance control module -1- from the bracket -3- in the direction of -arrow-.

-- Disconnect the connector -4-.

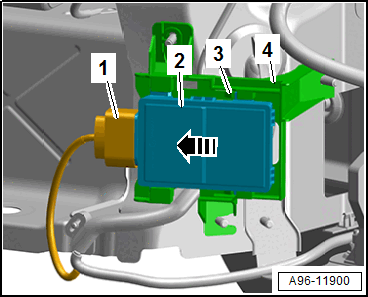

Lane Change Assistance Control Module 2 -J770-

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainer -3- with a screwdriver.

-- Remove the lane change assistance control module -2- from the bracket -4- in the direction of -arrow-.

-- Disconnect the connector -1-.
