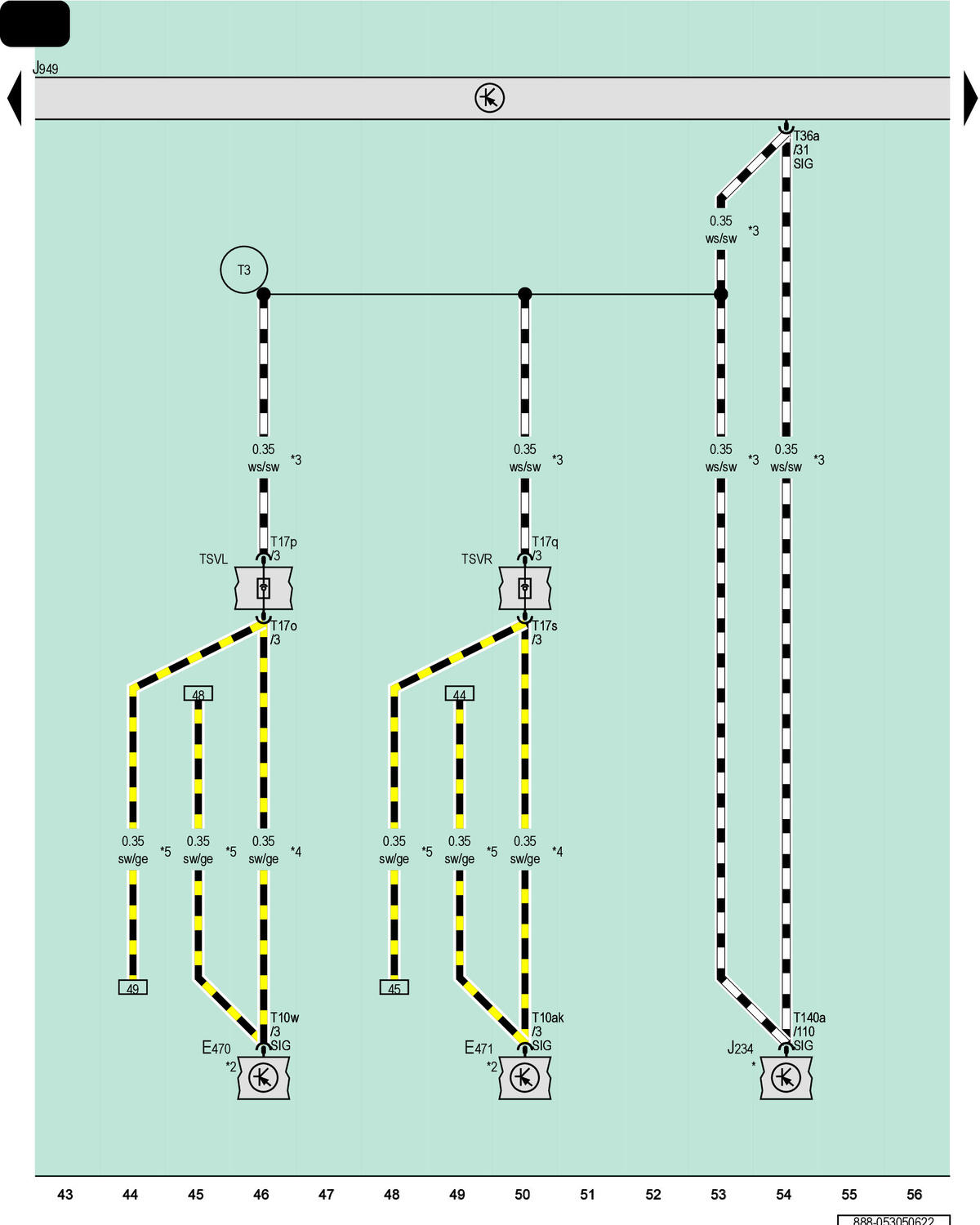

Driver Seat Adjustment Control Head, Front Passenger Seat Adjustment Control Head, Airbag Control Module, Control Module For Emergency Call Module And Communication Unit

Courtesy of AUDI OF AMERICA, LLC

E470

Driver Seat Adjustment Control Head

E471

Front Passenger Seat Adjustment Control Head

J234

Airbag Control Module

J949

Control Module for Emergency Call Module and Communication Unit

T10ak

10-Pin Connector, Black

T10w

10-Pin Connector, Black

T17o

17-Pin Connector, Red

T17p

17-Pin Connector, Red

T17q

17-Pin Connector, Red

T17s

17-Pin Connector, Red

T36a

36-Pin Connector, Black

T140a

140-Pin Connector, Yellow

TSVL

Left Front Seat Coupling Station

TSVR

Right Front Seat Coupling Station

T3

Connection (in Airbag Wiring Harness)

*

Refer to Applicable Airbag Wiring Diagram

*2

Refer to Applicable Seat Adjustment Wiring Diagram

*3

Depending on Equipment

*4

For LHD Vehicles

*5

For RHD Vehicles
