Transmission Identification

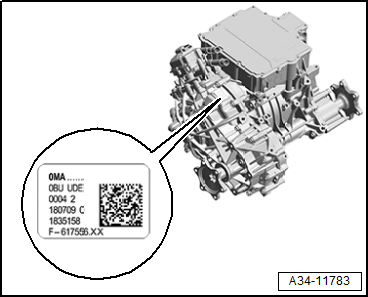

Location on Transmission 0MA

Fig 1: Location on Transmission 0MA

Courtesy of AUDI OF AMERICA, LLC

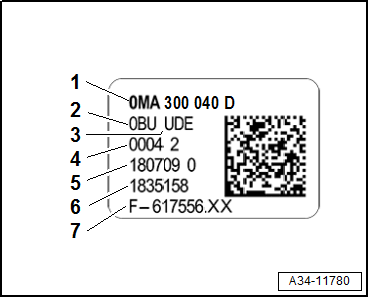

Transmission Information 0MA

Fig 2: Transmission Information 0MA

Courtesy of AUDI OF AMERICA, LLC

1. Part number. Refer to the appropriate Electronic Parts Information.
2. Assembly Group Number
3. Transmission Code
4. Transmission Serial Number
5. Production Date (Year Month Day)
6. Dimension for angular contact ball bearing shim and axial bearing shim ¹⁾
7. Ignore
