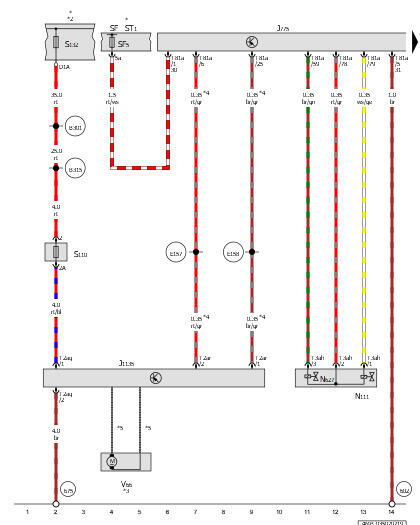

Drivetrain Control Module, Level Control System Compressor Electronics, Level Control System Solenoid, Level Control System Compressor Motor
J775
Drivetrain Control Module
J1135
Level Control System Compressor Electronics
N111
Level Control System Solenoid
N627
Air Spring Quick Fill Valve
ST1
Fuse Panel 1
SF5
Fuse 5 (On Fuse Panel F)
S110
Self-Leveling Suspension Fuse
S132
Safety Fuse 2
SF
Fuse Panel F
T2aq
2-Pin Connector, Black
T2ar
2-Pin Connector
T3ah
3-Pin Connector
T4i
4-Pin Connector, Black
T81a
81-Pin Connector, Black
V66
Level Control System Compressor Motor
602
Ground Connection in Left Front Footwell
675
Ground Connection 2 in Luggage Compartment on Right Side
B301
Positive Connection 5 (30) (in Main Wiring Harness)
B315
Positive Connection 1 (30a) (in Main Wiring Harness)
E157
Connection 1 (CAN Bus Suspension Control Module, High)
E158
Connection 1 (CAN Bus Suspension Control Module, Low)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
On the Battery
*3
Pre-Wired Component
*4
Data Wire
*5
Adapter Cable
