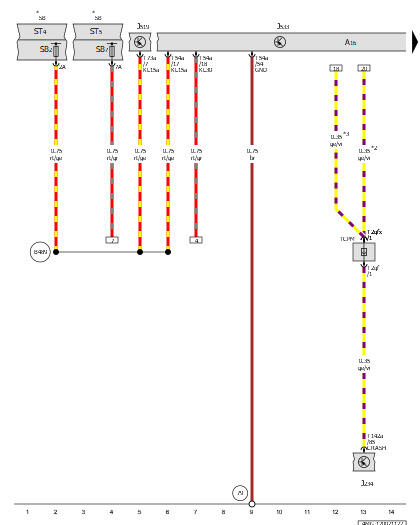

Airbag Control Module, Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel B

Courtesy of AUDI OF AMERICA, LLC

A16

Telematics Emergency Battery

J234

Airbag Control Module

J519

Vehicle Electrical System Control Module

J533

Data Bus on Board Diagnostic Interface

SB

Fuse Panel B

SB2

Fuse 2 (On Fuse Panel B)

ST4

Fuse Panel 4

ST5

Fuse Panel 5

SB7

Fuse 7 (On Fuse Panel B)

T2qf

2-Pin Connector, Black

T2qfx

2-Pin Connector, Black

T54a

54-Pin Connector, Black

T73a

73-Pin Connector, Black, Black

T142a

142-Pin Connector, Yellow

TCPM

Coupling Point on Instrument Panel, Center

79

Ground Connection on Left B-Pillar

B489

Connection 25 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles Without a Power Driver Seat

*3

For Vehicles with Power Memory Front Seats
