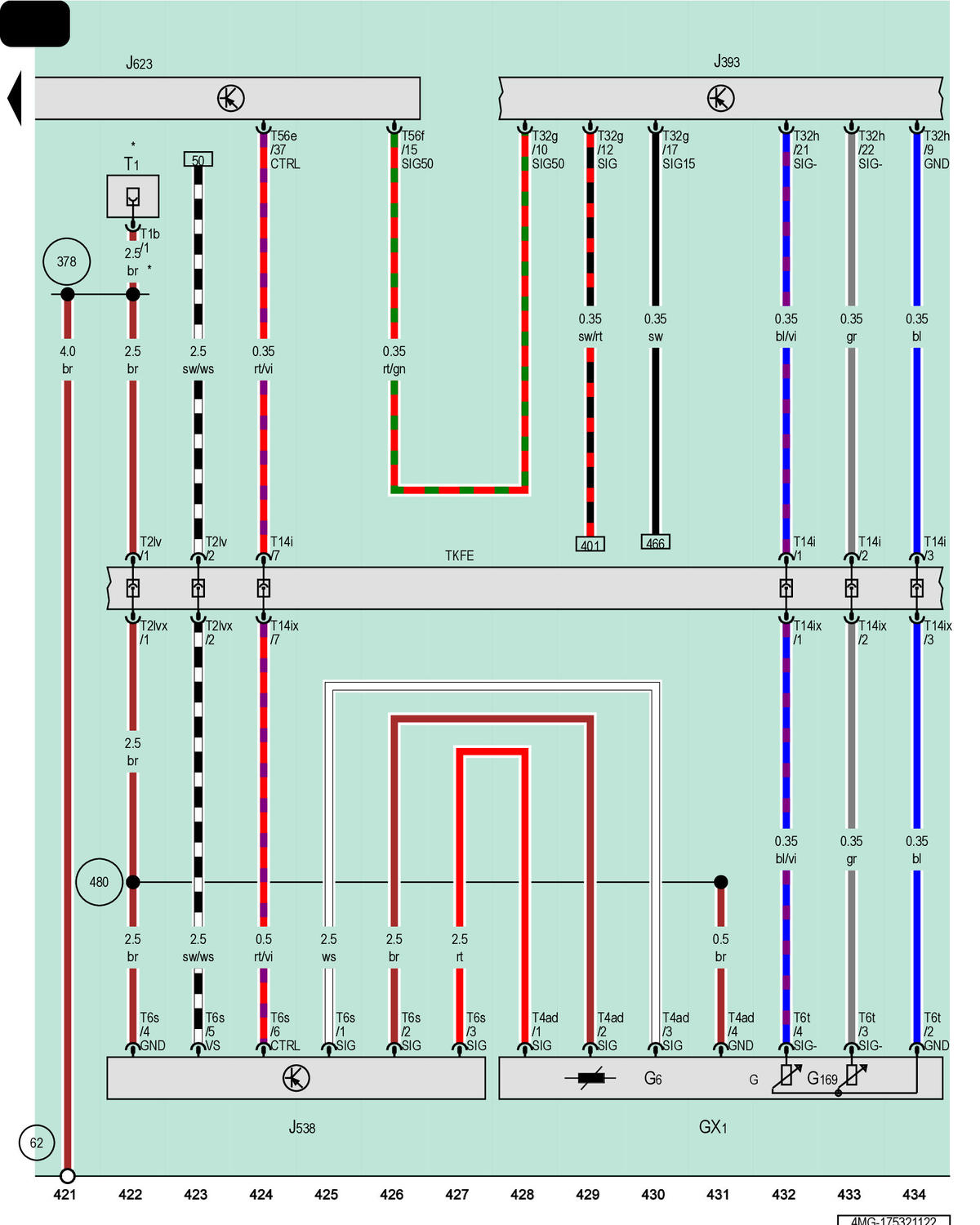

Fuel Delivery Unit, Comfort System Central Control Module, Fuel Pump Control Module, Engine/Motor Control Module

Courtesy of AUDI

G

Fuel Level Sensor

GX1

Fuel Delivery Unit

G6

Transfer Fuel Pump

G169

Fuel Level Sensor 2

J393

Comfort System Central Control Module

J538

Fuel Pump Control Module

J623

Engine/Motor Control Module

T1

1-Pin Connector, On the Rear Cross Panel, Near the Fuel Filler Neck

T1b

1-Pin Connector

T2lv

2-Pin Connector, Black

T2lvx

2-Pin Connector, Black

T4ad

4-Pin Connector, Black

T6s

6-Pin Connector, Black

T6t

6-Pin Connector, Black

T14i

14-Pin Connector, Black

T14ix

14-Pin Connector, Black

T32g

32-Pin Connector, Black, Naturally Cloudy

T32h

32-Pin Connector, Blue

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

TKFE

Fuel Delivery Unit Coupling Point

62

Ground Connection on Right C-Pillar

378

Ground Connection 13 (in Main Wiring Harness)

480

Ground Connection (in Fuel Tank Wiring Harness)

*

Depending on Equipment
