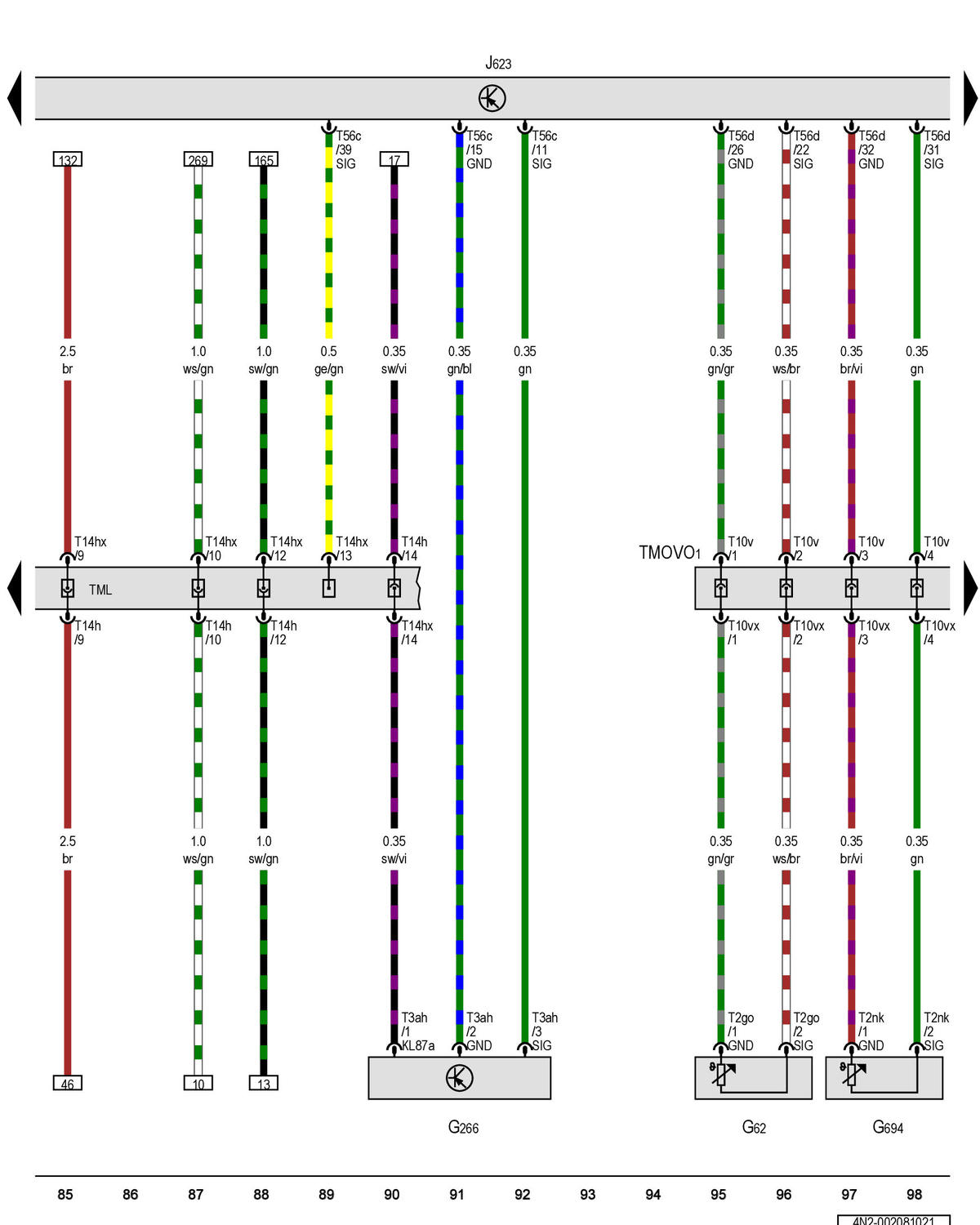

Engine Coolant Temperature Sensor, Oil Level Thermal Sensor, Engine Temperature Control Sensor, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G62

Engine Coolant Temperature Sensor

G266

Oil Level Thermal Sensor

G694

Engine Temperature Control Sensor

J623

Engine/Motor Control Module

T2go

2-Pin Connector, Black

T2nk

2-Pin Connector, Black

T3ah

3-Pin Connector, Black

T10v

10-Pin Connector, Black

T10vx

10-Pin Connector, Black

T14h

14-Pin Connector, Black

T14hx

14-Pin Connector, Black

T56c

56-Pin Connector, Black, Blue

T56d

56-Pin Connector, Black, Purple

TML

Coupling Point in Engine/Motor Compartment, Left

TMOVO1

Engine Pre-Wiring Coupling Point 1
