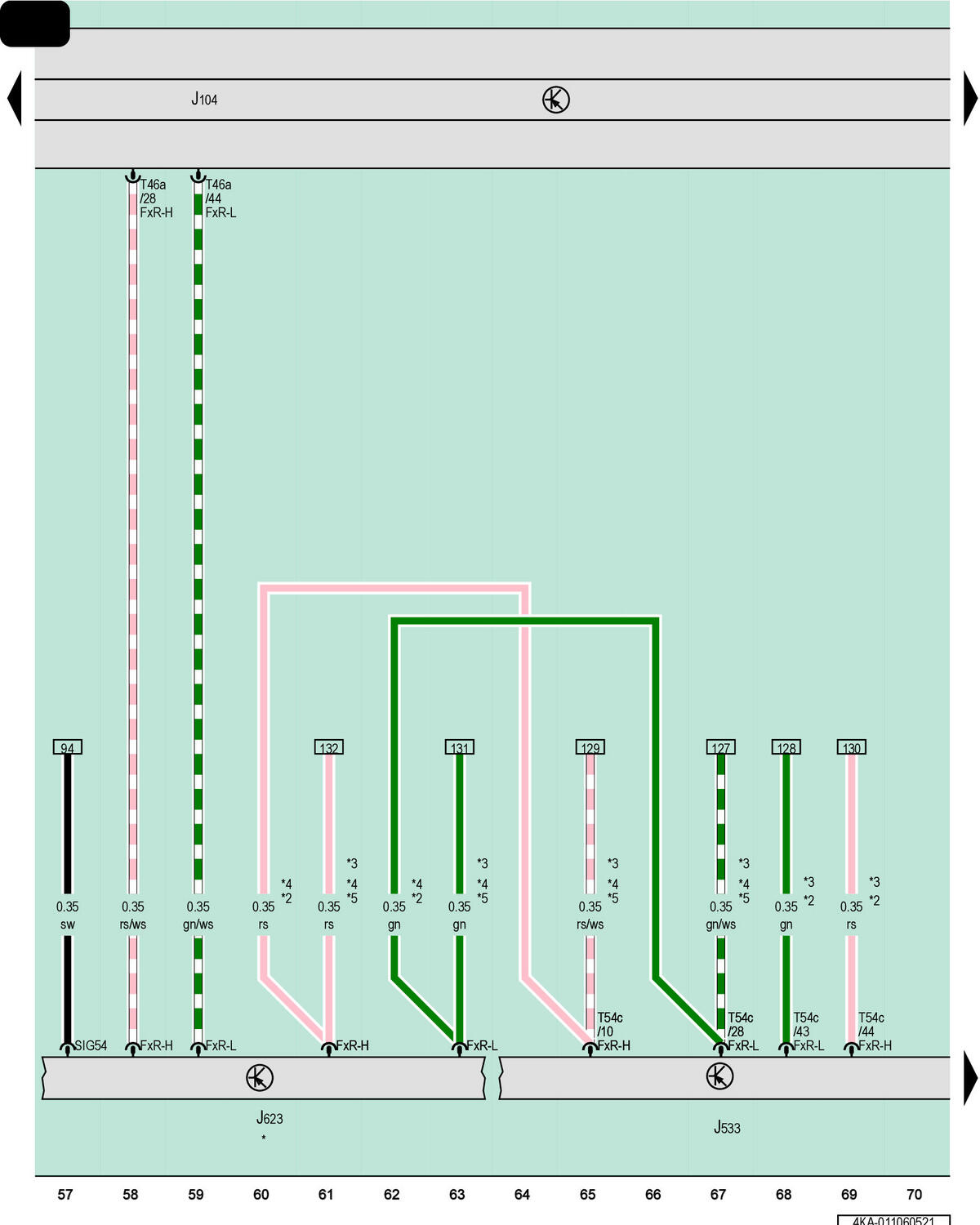

Abs Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module

T46a

46-Pin Connector, Black

T54c

54-Pin Connector, Black

*

Refer to Applicable Engine Wiring Diagram

*2

For Vehicles with Traffic Jam Pilot

*3

For Vehicles with Hybrid Drive

*4

For Vehicles with 2.0L Gasoline Engine

*5

For Vehicles Without Traffic Jam Pilot
