Transmission Support, Left-Side: Notes

-- Remove three way catalytic converters. Engine Code AAH, through 08.94. Refer to the appropriate Service Information. Engine Code AAH from 08.94 and Engine Code AFC

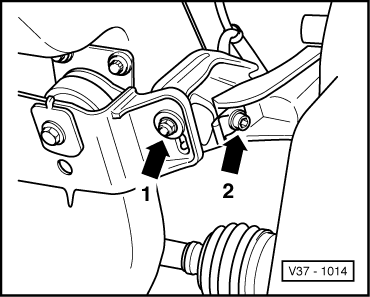

-- Loosen mounting nuts for left bonded rubber bushing (arrow -1-).

Courtesy of AUDI OF AMERICA, LLC

-- Unbolt left-side transmission support, at bonded rubber bushing (arrow -2-).

-- Disconnect harness connector for multi-function Transmission Range (TR) switch -F125-.

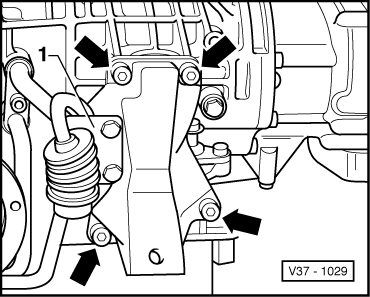

-- Disconnect bracket for TR switch harness connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove mounting bolts for transmission support (arrows) and remove transmission support.
