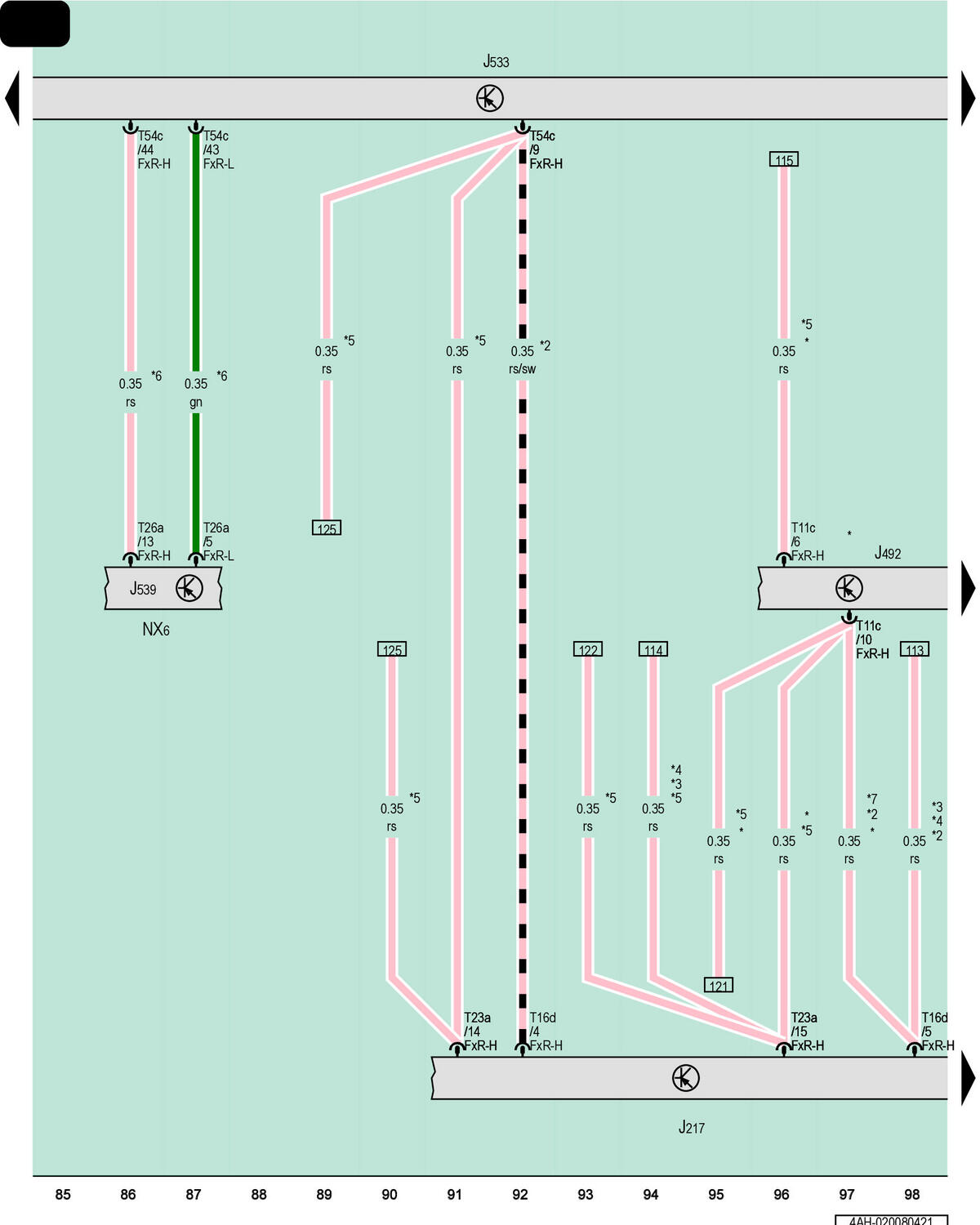

Transmission Control Module, All-Wheel Drive Control Module, Data Bus On Board Diagnostic Interface, Brake Booster

Courtesy of AUDI OF AMERICA, LLC

J217

Transmission Control Module

J492

All-Wheel Drive Control Module

J533

Data Bus on Board Diagnostic Interface

J539

Brake Booster Control Module

NX6

Brake Booster

T11c

11-Pin Connector, Black

T16d

16-Pin Connector, Black

T23a

23-Pin Connector, Black

T26a

26-Pin Connector, Black

T54c

54-Pin Connector, Black

*

For AWD Vehicles

*2

For Vehicles with 8-Speed Automatic Transmission

*3

For Vehicles Without All-Wheel Drive

*4

For Vehicles with Electromechanical Power Steering

*5

Depending on Equipment

*6

For Vehicles with 48 V System

*7

Omitted as a Running Change
