Vehicle Electrical System Control Module J519 Mount, Removing And Installing: Removing

-- Remove the vehicle electrical system control module. Refer to the appropriate Service Information .

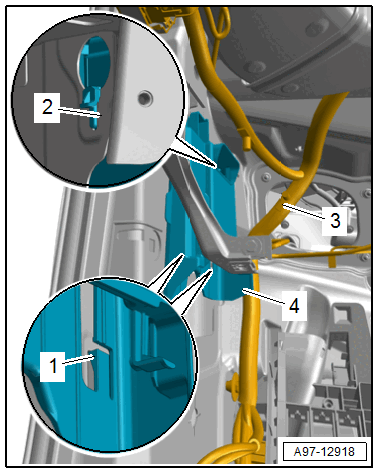

-- Free up the wiring harness -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -1-.

-- Slide the mount -4- so far up that the guides -2- are disengaged.

-- Remove the mount downward.
