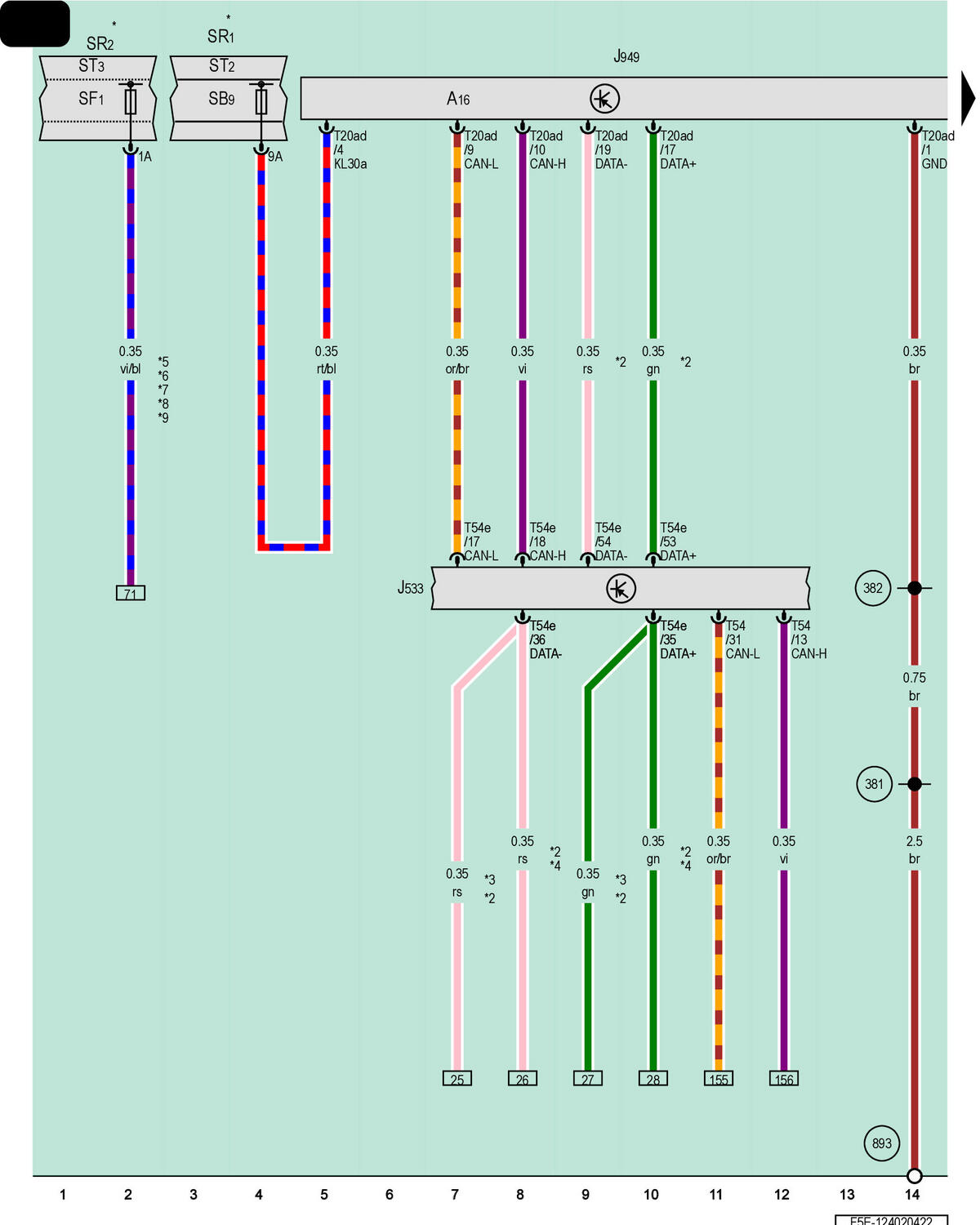

Data Bus On Board Diagnostic Interface, Control Module For Emergency Call Module And Communication Unit
A16
Telematics Emergency Battery
J533
Data Bus on Board Diagnostic Interface
J949
Control Module for Emergency Call Module and Communication Unit
SR1
Relay and Fuse Panel 1
SF1
Fuse 1 (On Fuse Panel F)
ST2
Fuse Panel 2
SR2
Relay and Fuse Panel 2
ST3
Fuse Panel 3
SB9
Fuse 9 (On Fuse Panel B)
T20ad
20-Pin Connector, Black
T54
54-Pin Connector, Black
T54e
54-Pin Connector, Gray
381
Ground Connection 16 (in Main Wiring Harness)
382
Ground Connection 17 (in Main Wiring Harness)
893
Ground Connection 2 on Left B-Pillar
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Ethernet Connection
*3
From December 2019
*4
Through November 2019
*5
Coupe
*6
For Vehicles with China Equipment
*7
Sportback
*8
From December 2021
*9
For Vehicles with External Vehicle Communication
