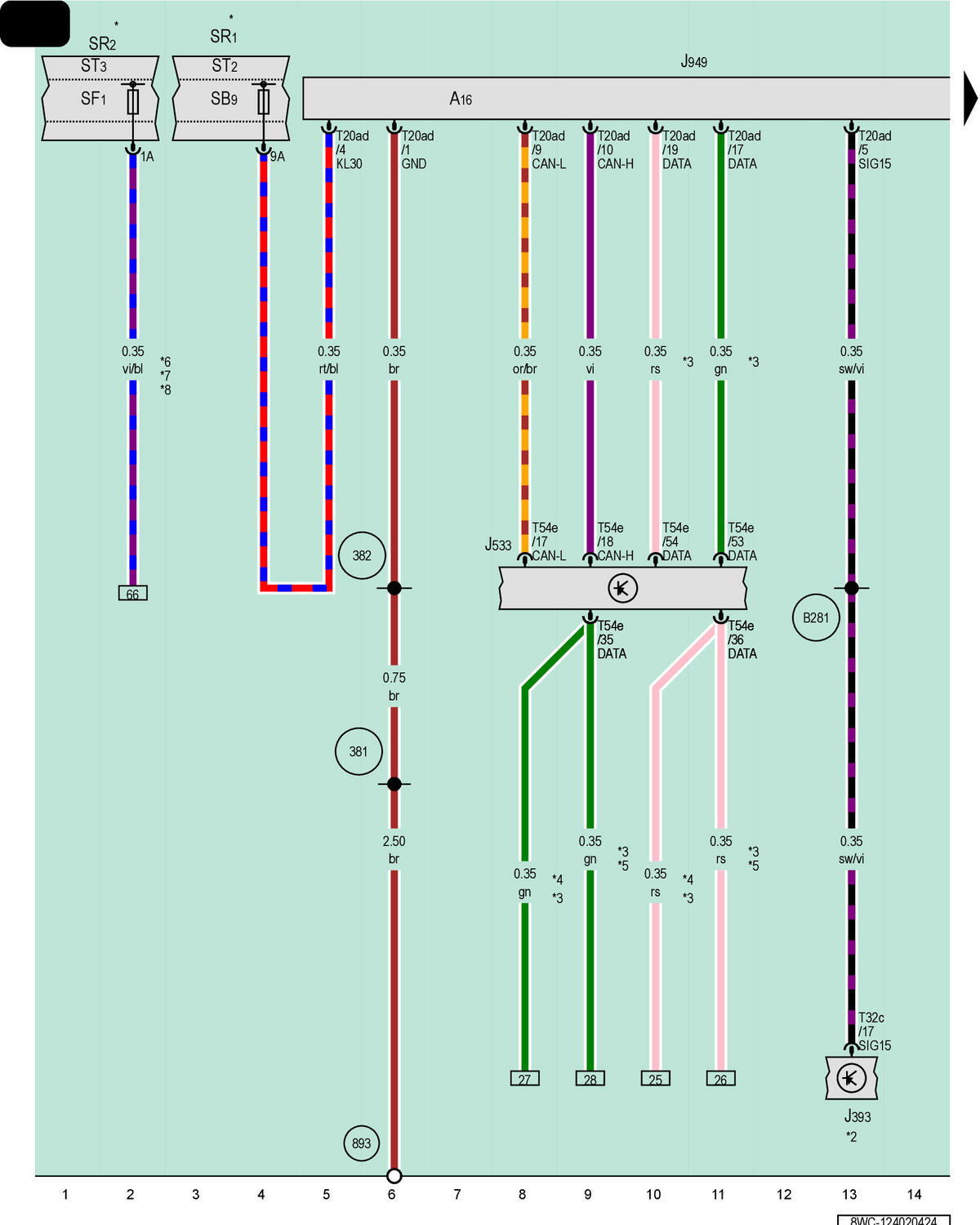

Control Module For Emergency Call Module And Communication Unit
A16 Telematics Emergency Battery
J393 Comfort System Central Control Module
J533 Data Bus on Board Diagnostic Interface
J949 Control Module for Emergency Call Module and Communication Unit
SR1 Relay and Fuse Panel 1
SF1 Fuse 1 (On Fuse Panel F)
SR2 Relay and Fuse Panel 2
ST2 Fuse Panel 2
ST3 Fuse Panel 3
SB9 Fuse 9 (On Fuse Panel B)
T20ad 20-Pin Connector, Black
T32c 32-Pin Connector, Black
T54e 54-Pin Connector, Gray
381 Ground Connection 16 (in Main Wiring Harness)
382 Ground Connection 17 (in Main Wiring Harness)
893 Ground Connection 2 on Left B-Pillar
B281 Positive Connection 5 (15a) (in Main Wiring Harness)
* Refer to Applicable Wiring Diagram for Fuse Positions
*2 Refer to Applicable Convenience System Wiring Diagram
*3 Ethernet Connection
*4 From December 2019
*5 Through November 2019
*6 For Vehicles with China Equipment
*7 From December 2021
*8 For Vehicles with External Vehicle Communication

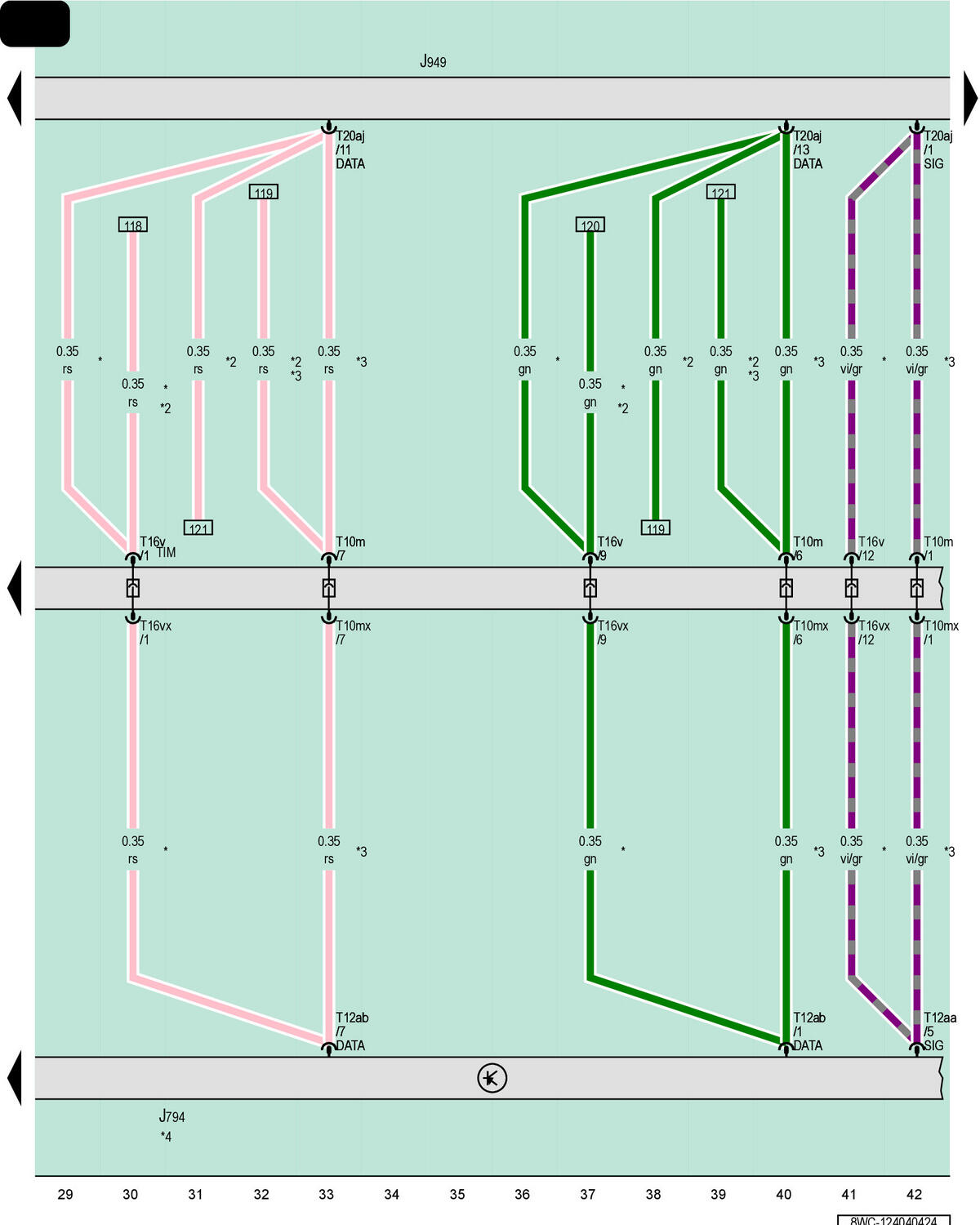

J794 Information Electronics Control Module 1
J949 Control Module for Emergency Call Module and Communication Unit
T10m 10-Pin Connector, Black
T10mx 10-Pin Connector, Black
T12aa 12-Pin Connector, Blue
T12ab 12-Pin Connector, Green
T16v 16-Pin Connector, Brown
T16vx 16-Pin Connector, Brown
T20aj 20-Pin Connector, Naturally Cloudy
TIM Coupling Point in Interior, Center
* From December 2019
*2 For Vehicles with Bang & Olufsen Sound System
*3 Through November 2019
*4 Refer to Applicable MMI (Information Electronics) Wiring Diagram
