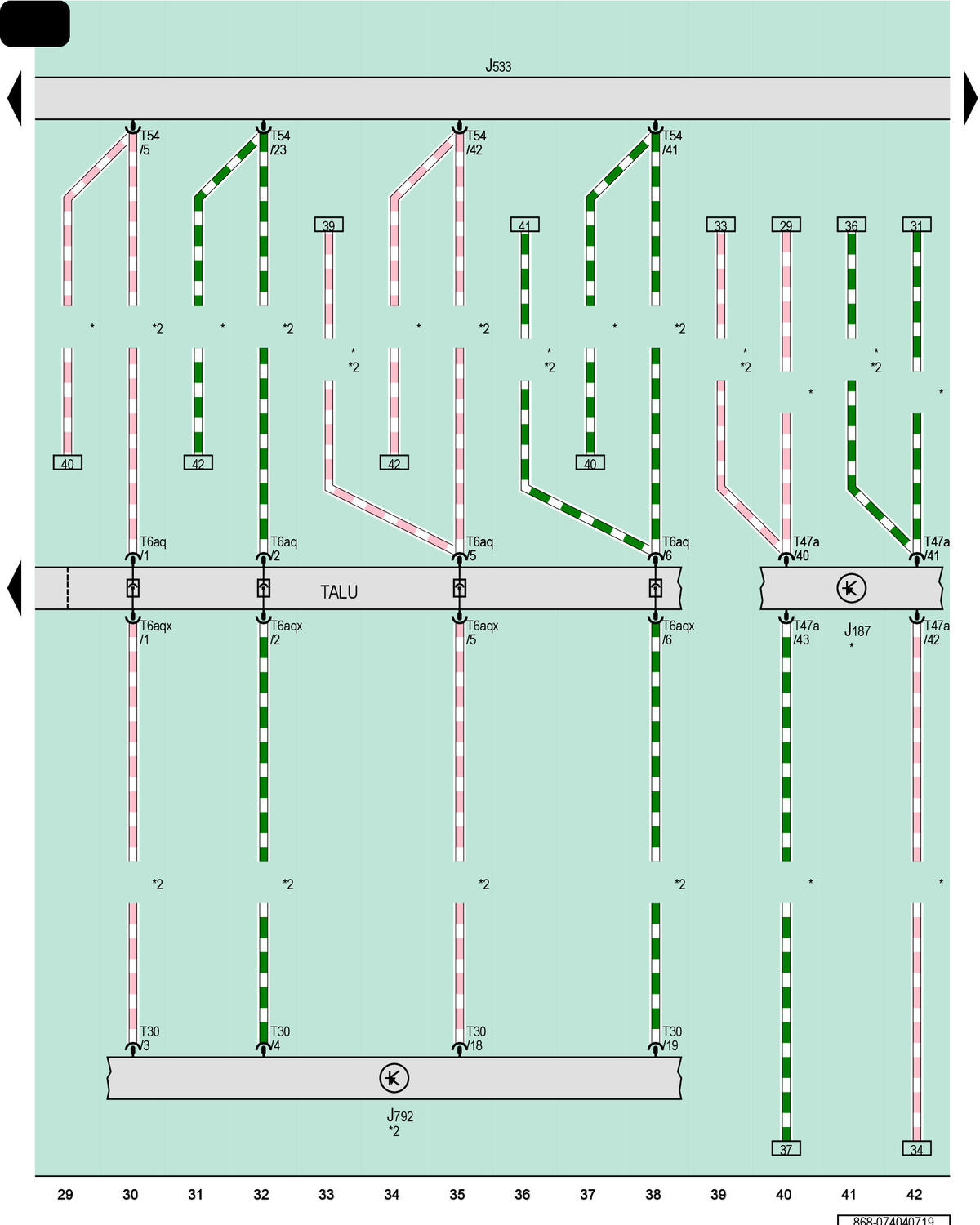

Differential Lock Control Module, Data Bus On Board Diagnostic Interface, Active Steering Control Module

Courtesy of AUDI OF AMERICA, LLC

J187  Differential Lock Control Module

J533  Data Bus on Board Diagnostic Interface

J792  Active Steering Control Module

T6aq  6-Pin Connector, Green

T6aqx  6-Pin Connector, Green

T30  30-Pin Connector, Black

T47a  47-Pin Connector, Black

T54  54-Pin Connector, Black

TALU  Coupling Point on Left A-Pillar, Bottom

*  For Vehicles with Rear Final Drive - Sport Differential

*2  For Vehicles with Active Steering
