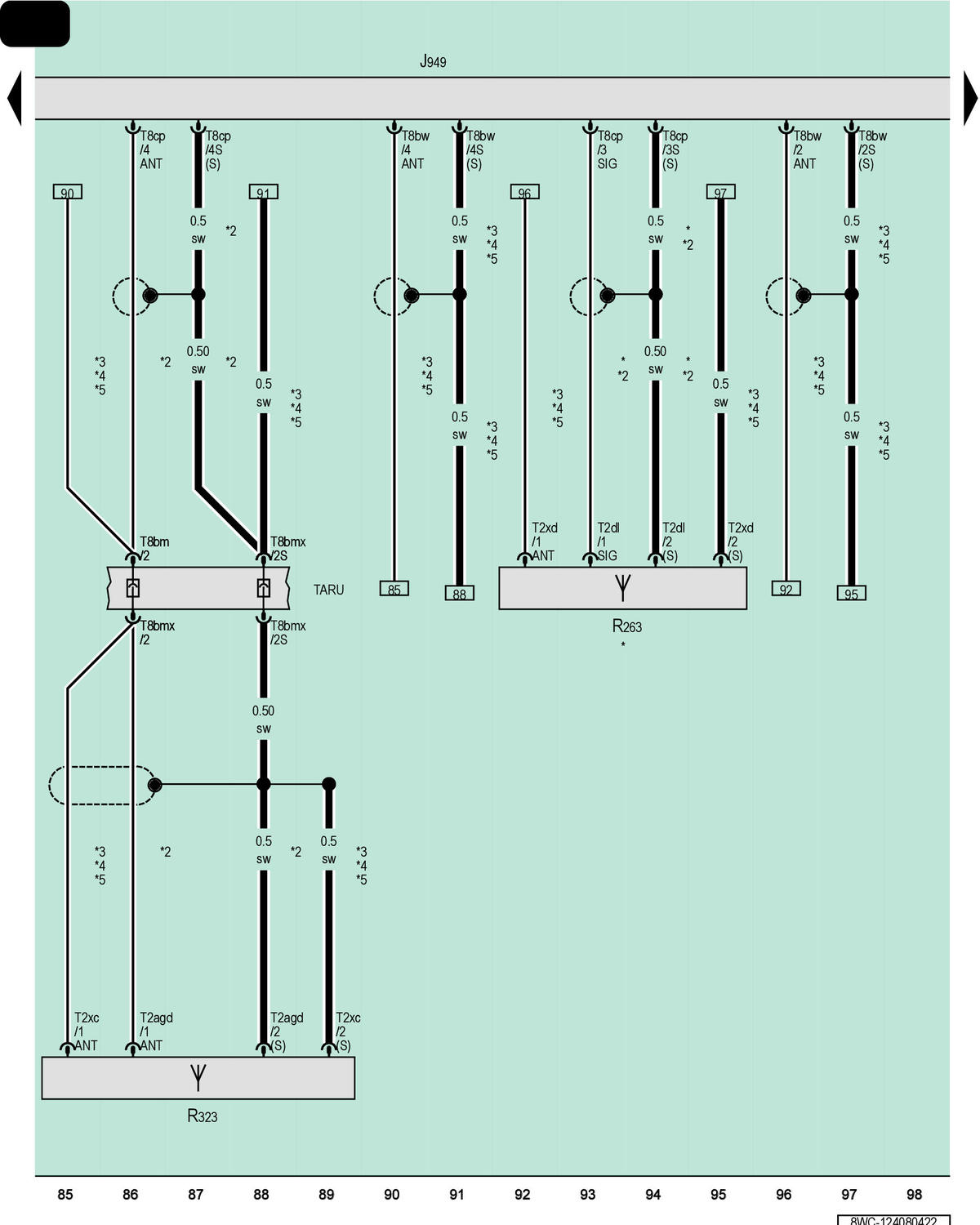

Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Antenna, Emergency Call Module Antenna 3

Courtesy of AUDI OF AMERICA, LLC

J949  Control Module for Emergency Call Module and Communication Unit

R263  Emergency Call Module Antenna, Behind the Left Rear Bumper

R323  Emergency Call Module Antenna 3, In the Instrument Panel

T2agd  2-Pin Connector, Purple

T2dl  2-Pin Connector, Purple

T2xc  2-Pin Connector, Black

T2xd  2-Pin Connector, Black

T8bm  8-Pin Connector, White

T8bmx  8-Pin Connector, White

T8bw  8-Pin Connector, Black

T8cp  8-Pin Connector, Black

TARU  Coupling Point on Right A-Pillar, Bottom

*  Depending on Equipment

*2  For Vehicles Without External Vehicle Communication

*3  For Vehicles with China Equipment

*4  From December 2021

*5  For Vehicles with External Vehicle Communication
