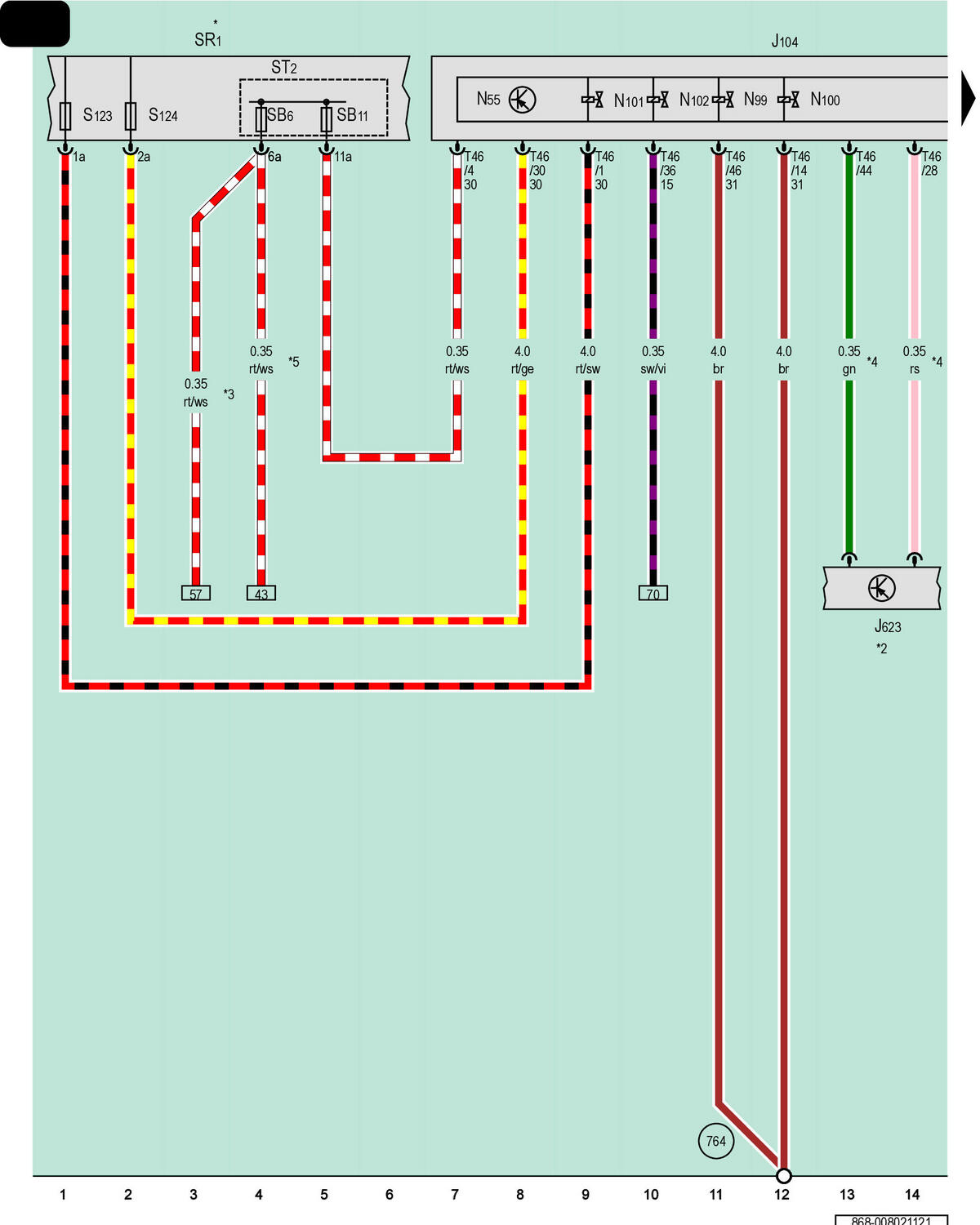

Abs Control Module, Engine/Motor Control Module
J104 ABS Control Module
J623 Engine/Motor Control Module
N55 ABS Hydraulic Unit
N99 Right Front ABS Inlet Valve
N100 Right Front ABS Outlet Valve
N101 Left Front ABS Inlet Valve
N102 Left Front ABS Outlet Valve
SR1 Relay and Fuse Panel 1, On the Lower Left A-Pillar
ST2 Fuse Panel 2, Red
SB6 Fuse 6 (On Fuse Panel B)
SB11 Fuse 11 (On Fuse Panel B)
S123 ABS Control Module Fuse 1
S124 ABS Control Module Fuse 2
T46 46-Pin Connector, Black
764 Ground Connection Inside Left Front Wheel Housing
* Refer to Applicable Wiring Diagram for Fuse Positions
*2 Refer to Applicable Engine Wiring Diagram
*3 For Vehicles with Automatic Transmission
*4 Data Bus Wire (Flexray Bus)
*5 For Vehicles with a Manual Transmission
